Introduction Of Rail Frog

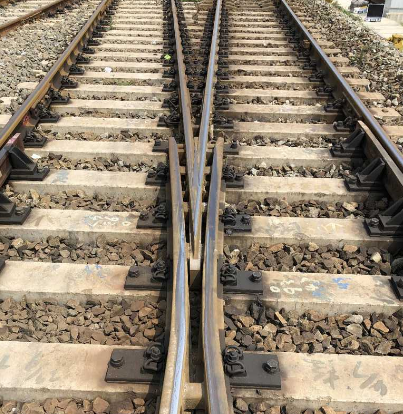

Frog refers to the equipment that makes the wheel cross one strand of steel rail over another strand of steel rail. It is composed of fork core, wing rail and connecting parts.

Frogs are distinguished by rail models: 8kg/m, 12kg/m, 15kg/m, 18kg/m, 22kg/m, 24kg/m, 30kg/m, 38kg/m, 43kg/m, etc.

As an important part in railway turnout, it helps to enable the traffic ability and safety of the rail.

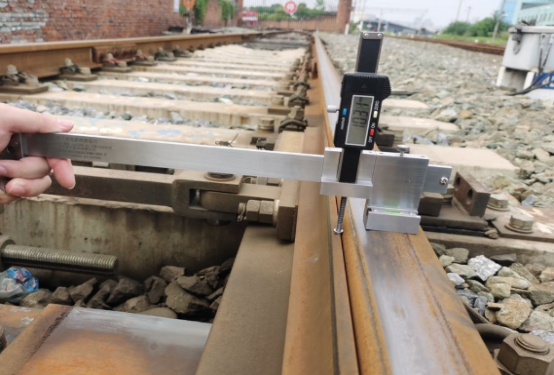

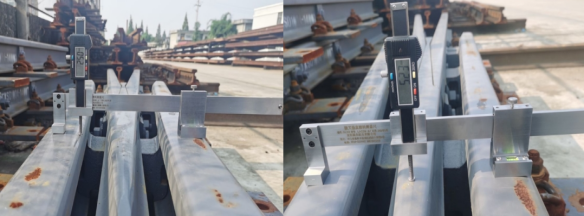

Rail Frog Wear Gauge is a necessary measuring device to check all kinds of rail frog.Timely and regular inspection of the rail frog wear can ensure the smooth, stable and safe operation of the railway.

Rail Frog Wear Gauge Function:

1.Height wear value of wing rail and point rail.

2. Vertical wear value of switch rail at any sections.
