Rail Cant !

Rail Cant !

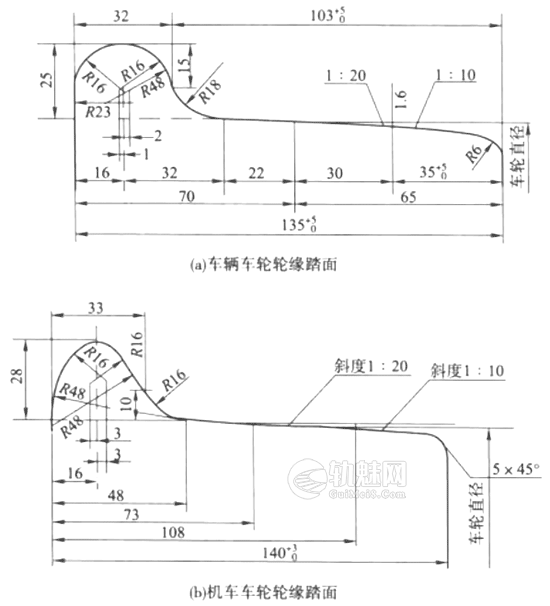

In order to make the locomotive wheel set run flexibly and stably on the two steel rails of the line, and pass through straight lines, curves and turnouts smoothly, the wheel treads have a certain taper. Early Chinese railway wheels have conical treads with 1/20 and 1/10 slopes

During the operation of the wheel, the main contact part between the wheel tread and the top surface of the rail is the 1/20 slope range, and the 1/10 slope tread only contacts the rail top on a small radius curve.

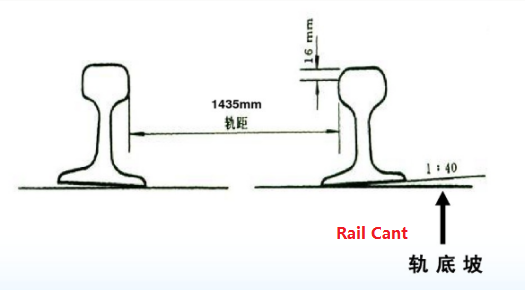

Since the main contact part between the wheel tread and the top surface of the rail is a slope of 1/20, in order to force the axis of the rail, the rail also has an inward inclination, so there must be a slope at the bottom of the rail, that is, the bottom slope of the rail.
