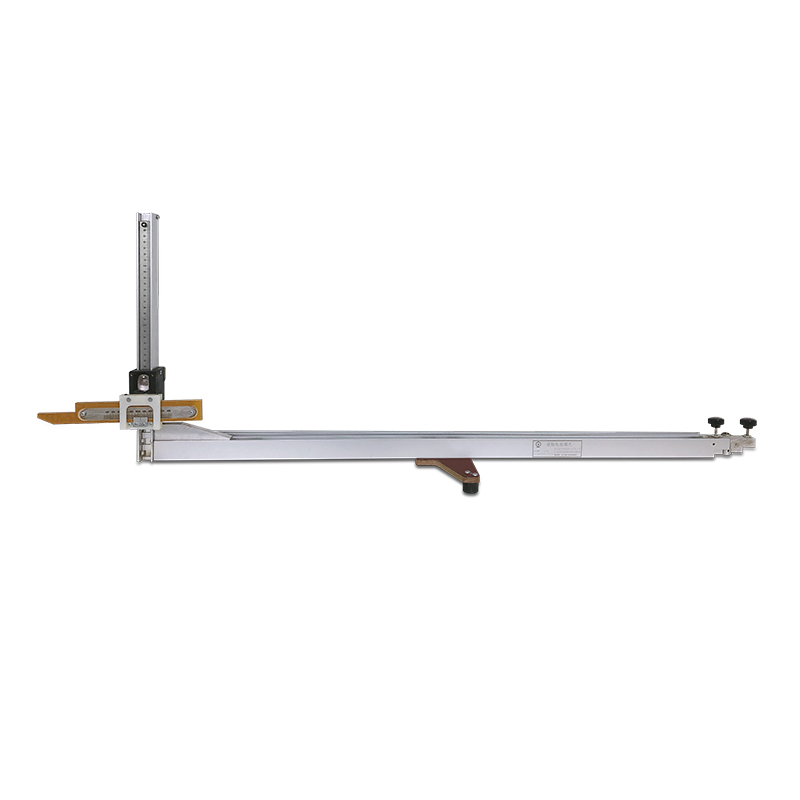

Third Rail Measuring Gauge

INQUIRY

Product Description

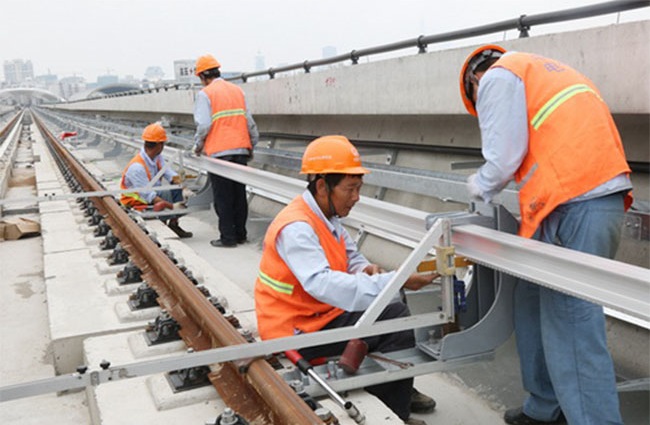

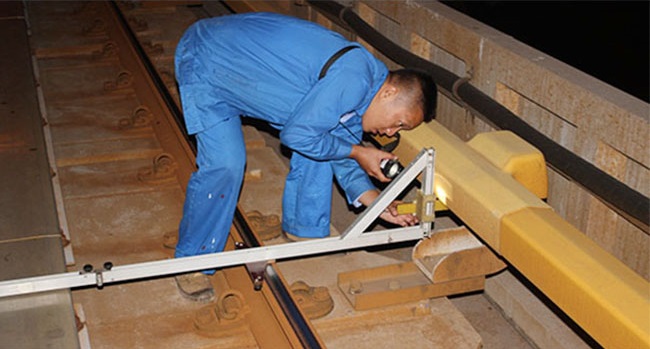

Contact rail gauge, also called third rail gauge, is a special measuring instrument for measuring the guide height of contact rail (the vertical distance between the horizontal surface of contact gauge track) and the pull out value (the horizontal distance between the inner surface of contact gauge track) in rail transit.

Specification

Model	LJ-JCG-I
Type	Third Rail Measuring Gauge
Material	Aluminium Alloy
Dimensions (L x W x H) (mm)	1650120250mm
Vertical Measure range	1418±25mm or customize
Horizontal Measure range	100±10 mm or customize
Accuracy	0.5mm
