Railway Tools

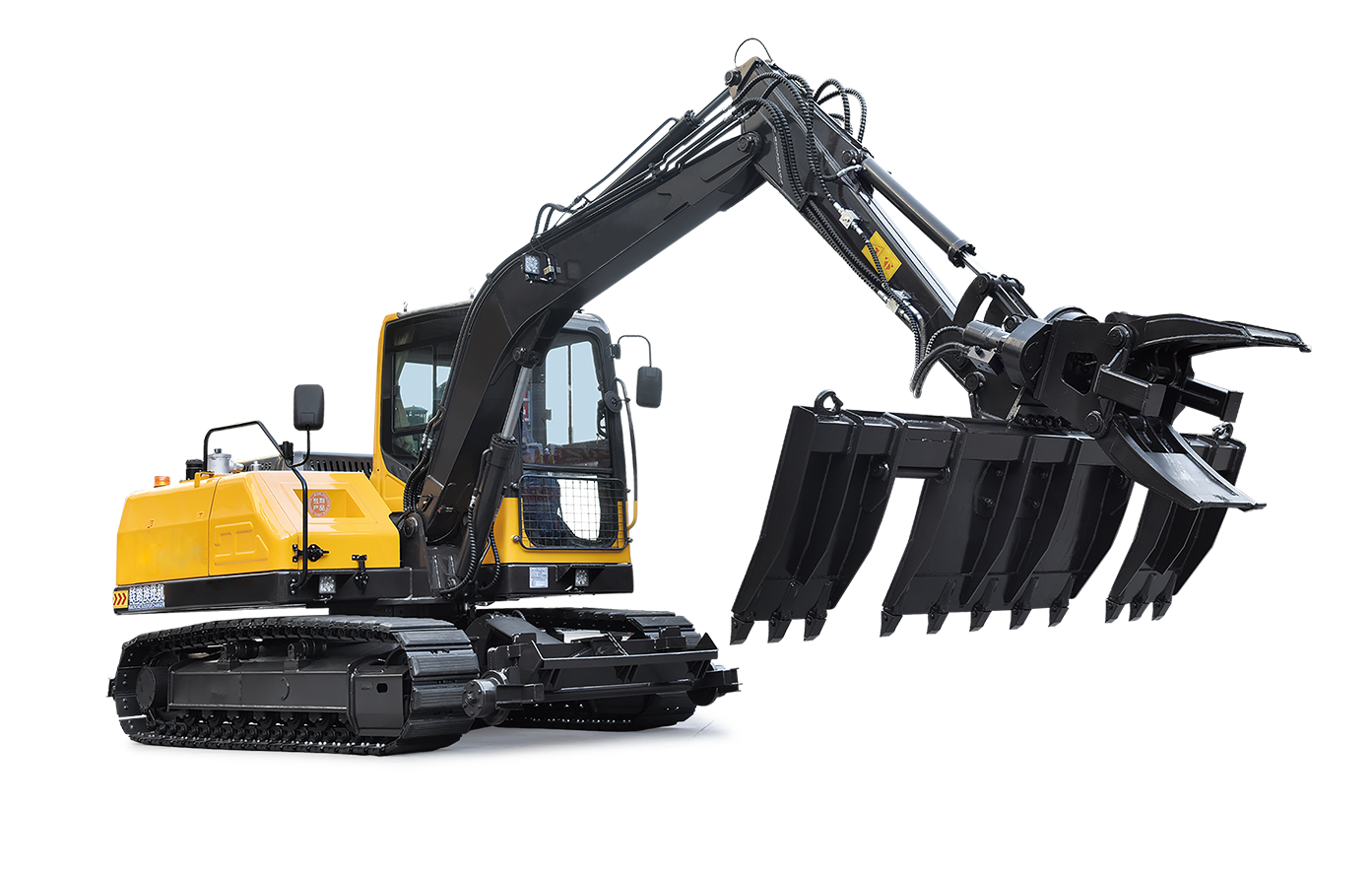

Railroad Excavator
A wheeled excavator is a versatile construction machine that combines the functionalities of a traditional excavator and a wheeled vehicle.
This innovative equipment features a set of wheels instead of tracks, which allows for greater mobility and maneuverability on various terrains.
① Range of operation
Max. digging reach
7200mm
Max. digging force
90KN
Back-end radius of gyration
2250mm

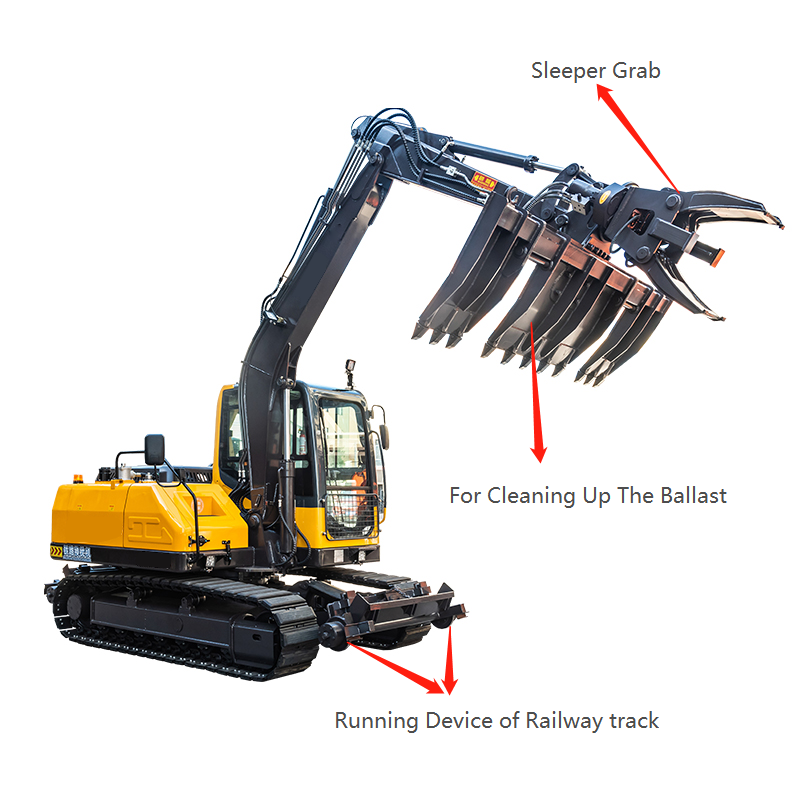

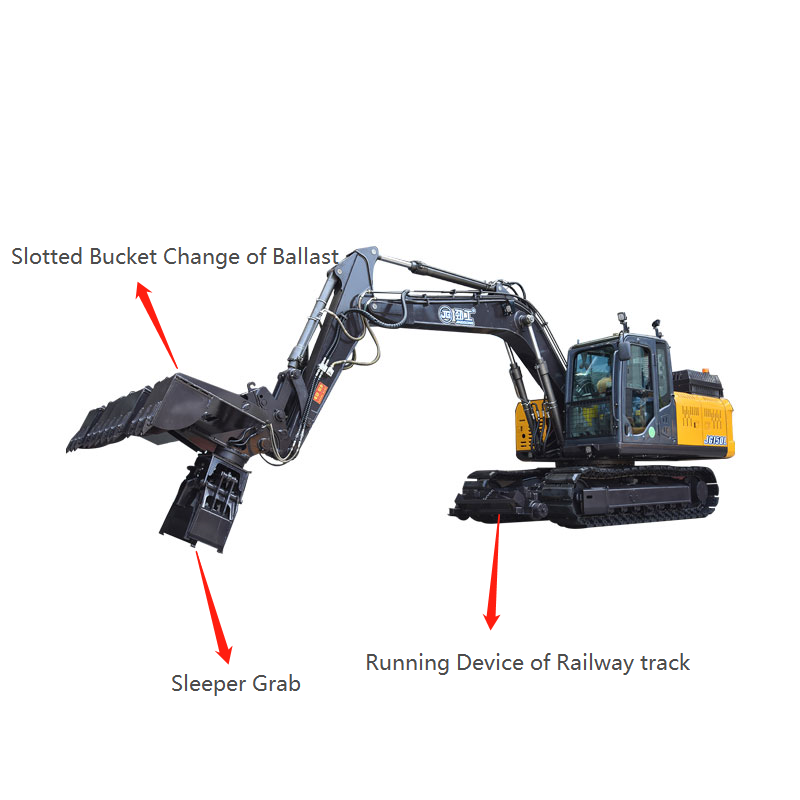

② Sleeper changer attachment
Max. opening width of grab
650mm
Max. radius grabing weight
0.8-1.0T
Max.width of grab
3000mm (customized acceptable)
Grapple rotation angle
360°
③ Dimensions
(L*W*H) Transport Dimensions
10000*2500*3500mm
Axle base
2750mm
Track guiding wheelbase
4500mm
Applicable railway gauge
1435mm
Wheel base(front / rear)
1900mm
Ground clearance of counterweight
1290mm
Min ground clearance
310mm
④ Tech performance and specification
Efficiency
≥40pic/h
Angle of rotation
360°
Machine weight
17500kg
Engine model
Cummins (EuroIII)
Rated Power
154KW
Hydraulic system working pressure
32Mpa
Hydraulic system flow
270L/min
Max. traction force
76.5KN
Walking speed
28km/h
Grade climbing ability
70%/35°
Full circle swinging time
5.5s
