Rail Cutting Machine
NQG-5.8 Portable Lightweight Abrasive Rail Saw Disc Cutter
PRODUCR DESCRIPTION

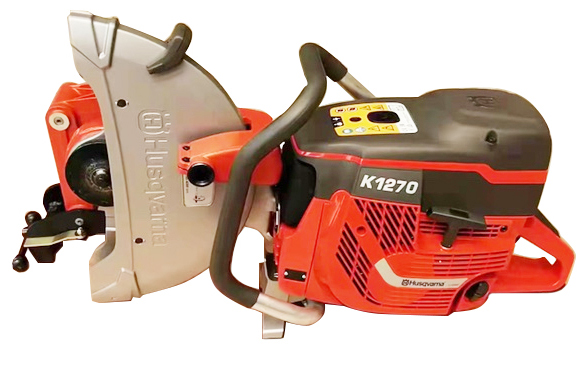

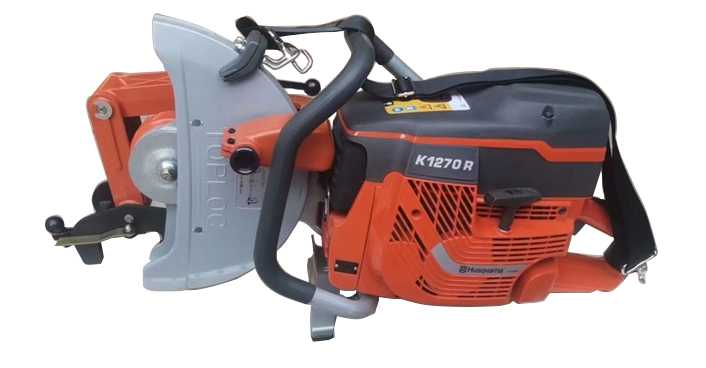

NQG-5.8 Abrasive Rail Saw

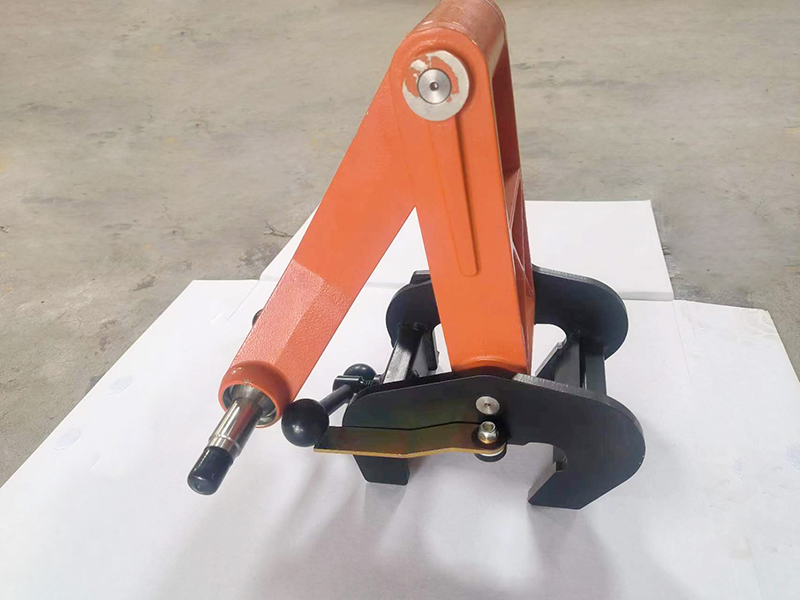

K1270 Engine lightweight abrasive rail saw is a railway maintenance tool. It not only cuts rails with high speed and high quality, but also has low wear cutting discs. It is locked by rail clamps. It has a simple structure, light weight, safety and easy movement. It is suitable for maintenance, repair of broken rails of seamless tracks, and cutting of steel rails in long rail welding factories.
SPECIFICATION
|
Model
|
NQG-5.8
|
|
Type
|
Rail Cutting Machine
|
|
Material
|
Stainless Steel
|
|
Dimensions (L x W x H) (mm)
|
850*480*500mm
|
|
Engine
|
Single-cylinder, air-cooling
two-stroke petrol engine
(imported from Sweden K1270R)5.8 kW
|
|
Cutting disc form
|
Double- layer reinforced wire mesh
|
|
Linear speed of cutting disc
|
100 m/s
|
|
Rated RPM
|
≥4500 r/min
|
|
Specification of cutting disc
|
φ355xφ25.4 x3.8mm / φ400xφ25.4 x4.0mm
|
|
Cutting accuracy
|
Vertical deviation of notch and rail≤0.30mm
Deviation of bidirectional cutting interfaces≤0. 35mm
|
|
Cutting time
|
≤110s( cut off 60kg/m rail)
|
|
Fuel tank capacity
|
1.25 L
|
|
Weight
|
22kg
|
