Rail Grinding Machine
NGM-4.8 Internal Combustion Digital Rail Grinding Machine
Product Description

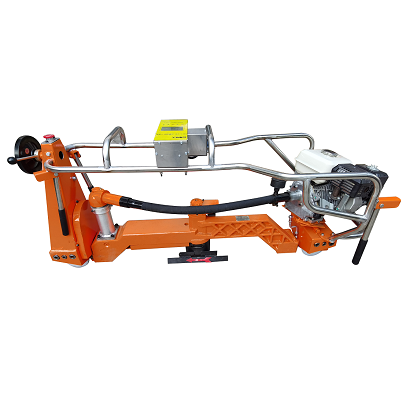

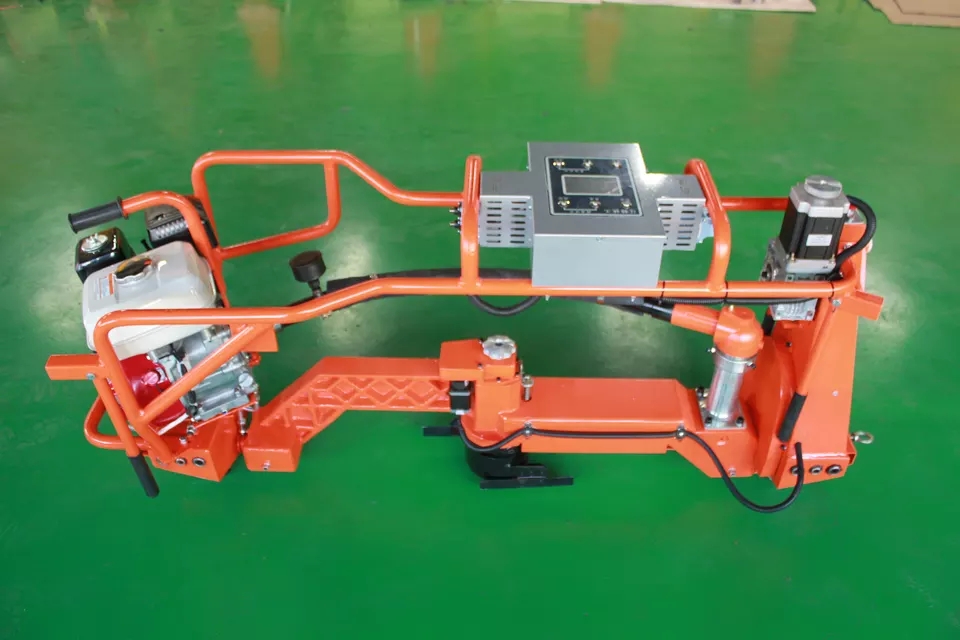

NGM-4.8I Digital Display Rail Grinding Machine

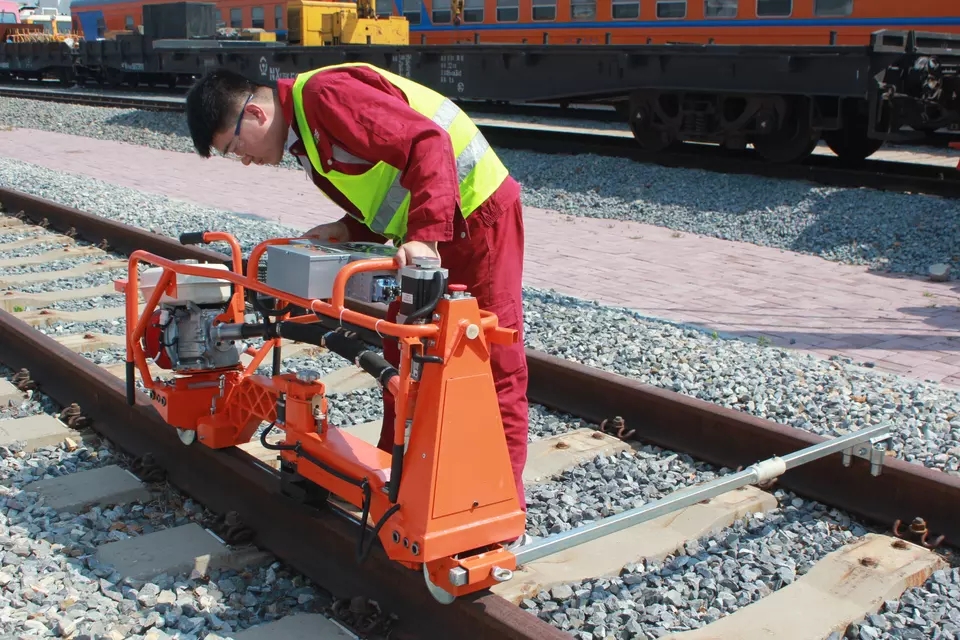

NGM-4.8I digital display rail grinding machine is suitable for grinding 43kg/m-75kg/m rail weld, uneven joint, rail side fat edge, rail surface welding repair and other parts. With a multi-purpose, automation and intelligent set as one of the high-precision rail grinding machine.
|
Model
|
NGM-4.8I
|
|
Type
|
Rail Grinding Machine
|
|
Material
|
Stainless Steel
|
|
Dimensions (L x W x H) (mm)
|
1500 * 450 * 750 mm
|
|
Internal combustion engine
|
GX200, > 3600r/min, 4.8kW
|
|
Grinding Wheel Specification
|
125*65*M20
|
|
Grinding Wheel Linear Velocity
|
> 35m/s
|
|
Spindle rotation
|
4500r/min
|
|
Inclination angle of grinding wheel
|
+90 degrees
|
|
Accuracy of inclination angle
|
0.5 degree, 1.0 degree, 2.0 degree, 3.0 degree, 4.0 degree, 5.0 degree
|
|
Grinding wheel stroke
|
45 mm
|
|
Grinding wheel feed accuracy
|
0.05 mm, 0.1 mm, 0.15 mm, 0.2 mm, 0.25 mm, 0.3 mm
|
|
Profile wheelbase
|
1000mm
|
|
Weight
|
90kg
|
Application
