Wear Gauge

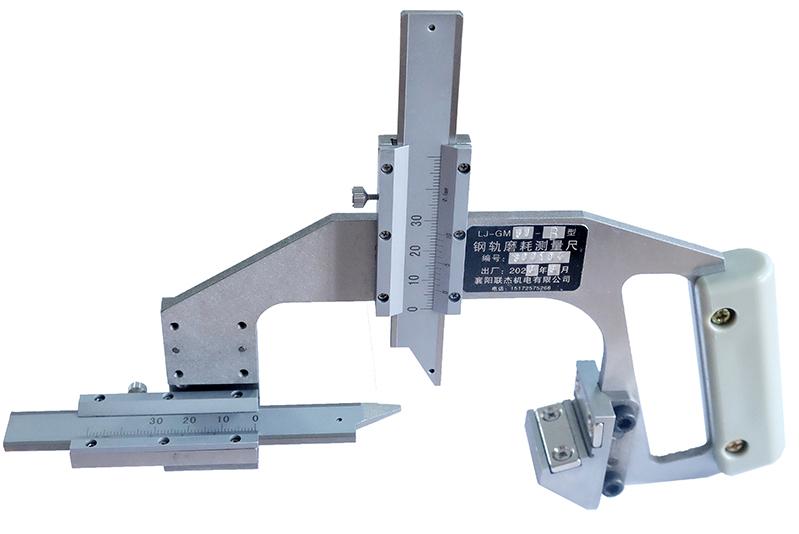

Analogue/ Mechanical Rail Head /Profile Wear Gauge
PRODUCT DESCRIPTION

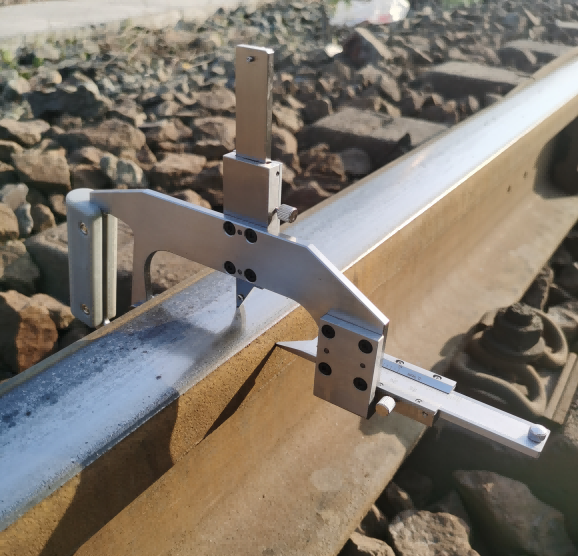

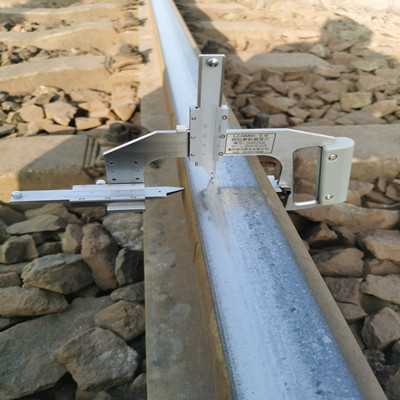

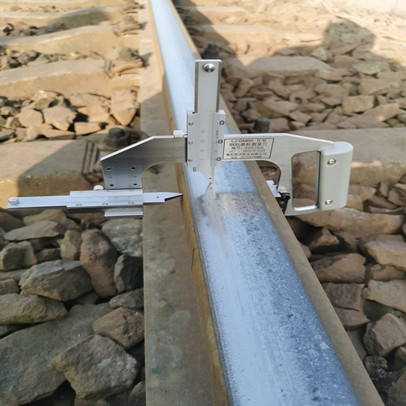

Mechanical Rail Wear Gauge is mainly used to measure the vertical wear and lateral wear of the rail. The reasonable design makes it convenient operation and intuitive reading.
FEATURE
Analogue Rail Wear Gauge is easy to operate,high reliability,small volume,light weight etc.
SPECIFICATION
|
Model
|
LJ-GM-B
|
|
Vertical wear measure range
|
0-15mm
|
|
Lateral wear measure range
|
0-25mm
|
|
Score value
|
0.1mm
|
|
Supply Customize
|
UIC60/60E1, UIC54 /54E1, 115RE 68TR ect all profiles
|
|
Block
|
customize block for gauge
|
APPLICATION

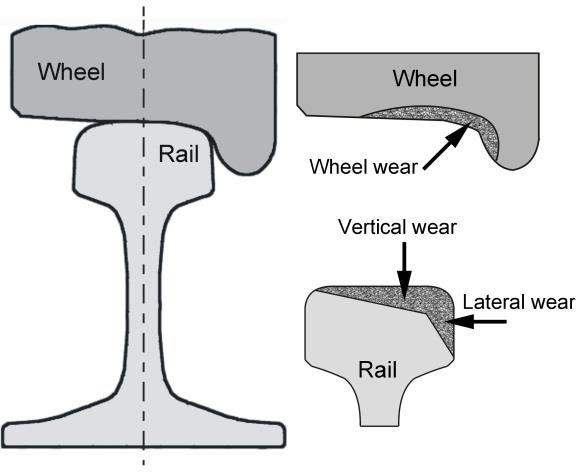

Causes of wear of rails:
1. Unreasonable curve design2. Poor maintenance
(a) Uneven alignment
(b) Excessive gauge
(c) Insufficient transition curve superelevation rate reduction distance
(d) Unclean ballast, poor tamping, presence of track defects such as triangular pits, concealed pits, and hanging plates, and track mud pumping defects
3. Incorrect rail positioning
(a) Inappropriate superelevation
(b) Incorrect rail bottom slope
Solutions:
1. Proper adjustment of the outer rail superelevation on curves
2. Regular oil coating
3. Strengthen maintenance and eliminate exceedance
4. Rectify defects in rails and components
5. Select wear-resistant fully quenched rails
6. Swap the use of rails between straight sections and curves
