Lithium Battery Rail Machinery
Li-Battery Powered Coachscrewing Impact Wrench Machine
Product Description
Lithium Battery Powered Rail Bolt Wrench

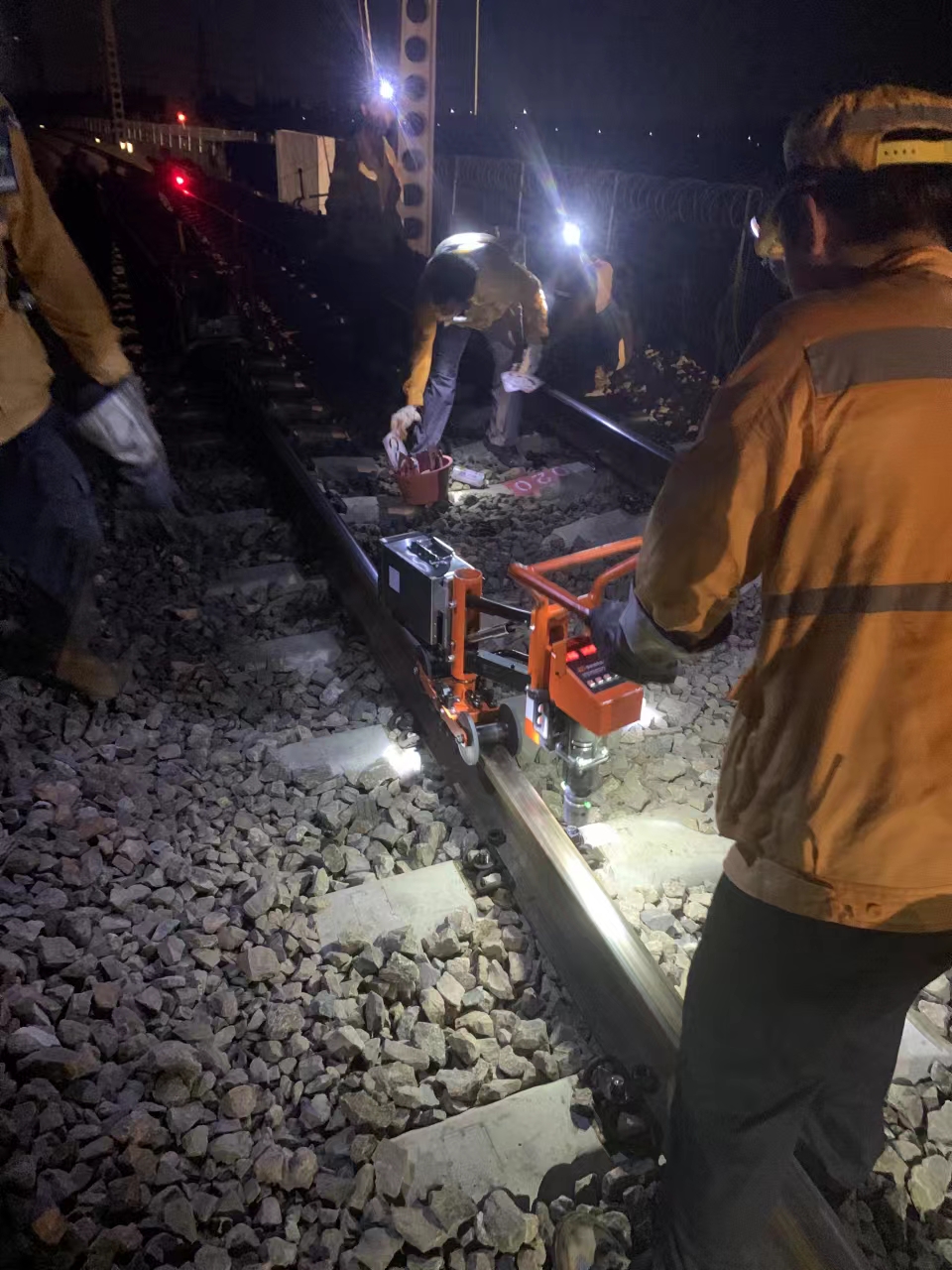

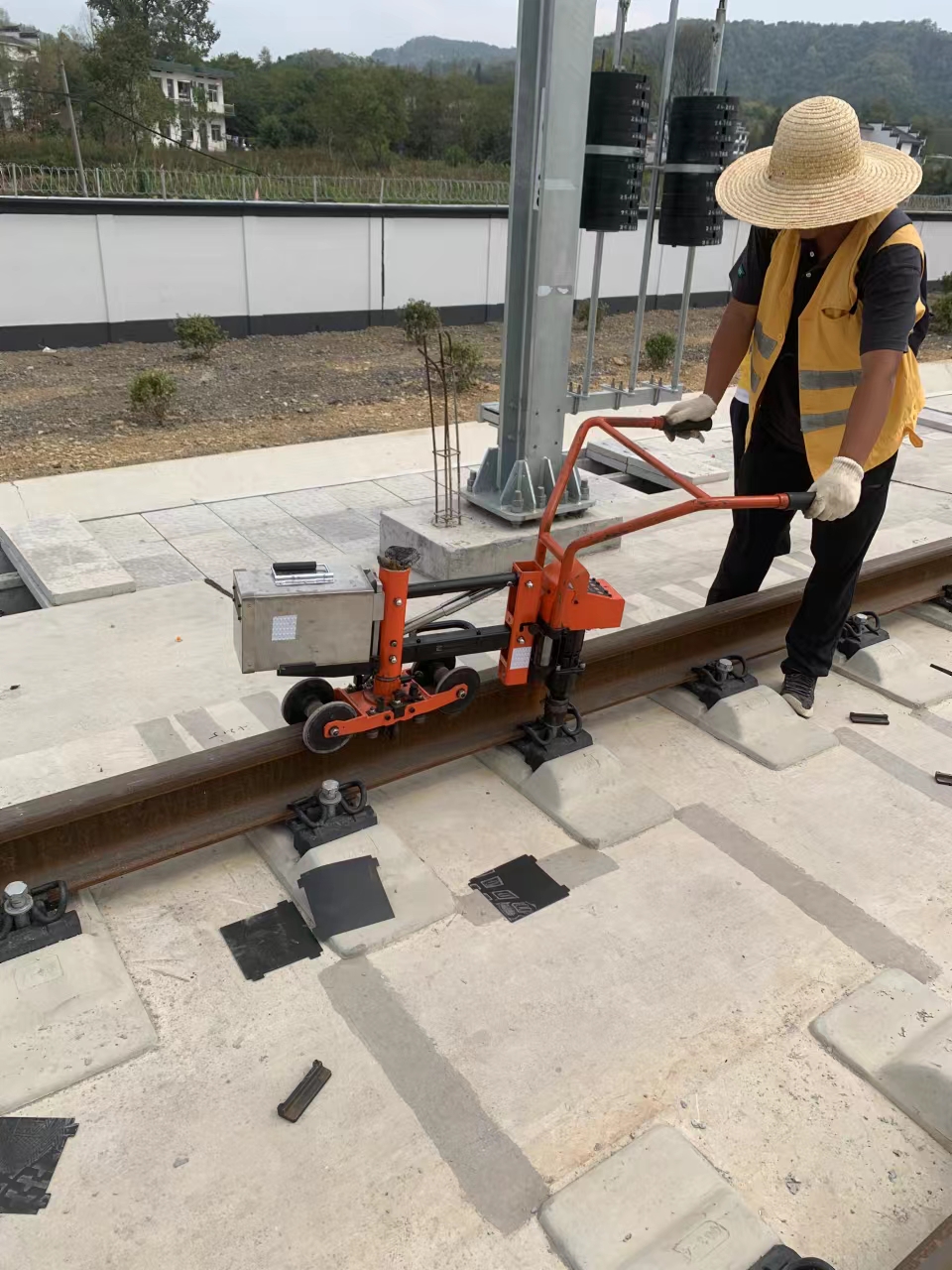

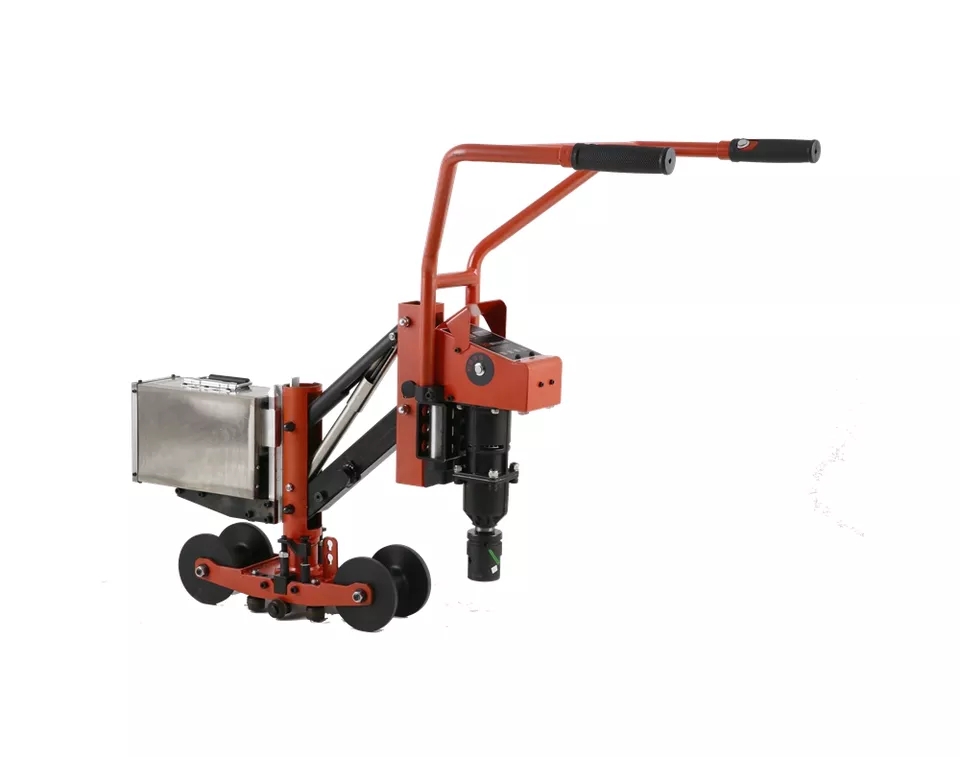

Lithium battery powered Rail bolt wrench machine (model: LJ-LDB171X) is composed of host, control system, battery system and rail traveling part. The utility model has the advantages of compact structure, light weight, flexible assembly and disassembly, convenient use and no exhaust emission. It can be transported separately, which is convenient for single person to carry on site. The weight of the separated part is less than 15kg. It is applicable to the laying, maintenance and emergency rescue of railway, and is specialized in various railway bolt operations
|
Model
|
LJ-LDB1701X
|
|
Type
|
Lithium Battery Torque Wrench
|
|
Material
|
Stainless Steel
|
|
Dimensions (L x W x H) (mm)
|
1100*700*450mm
|
|
Type
|
Battery powered rail bolt wrench
|
|
Rated voltage
|
(DCV) 24-48
|
|
Max. torque
|
3000 N.m
|
|
Motor speed (RPM)
|
0-3000 optional
|
|
Impact frequency (BPM)
|
0-5000 optional
|
|
Battery pack capacity
|
(ah) 24-48
|
|
Operating temperature range
|
(-40 ~ 50 ℃)
|
|
Operating range
|
m6-m30
|
|
Torque control
|
adjustable and controllable
|
|
Weight
|
22kg
|
