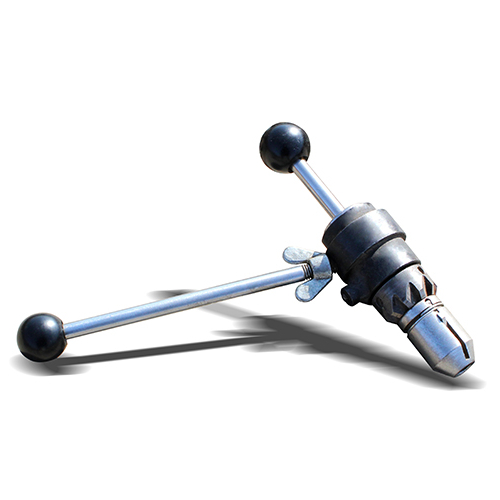

Rail Hole Single Side Chamfering Tool Kits
Product Description
Single-side rail chamfering device is a special tool for eliminating the stress concentration at the sharp corner after rail drilling operation. It has the advantages of compact structure, simple operation, small size, light weight and convenient carrying etc. It is an indispensable tool in rail drilling works.
Specification
|
Model
|
LJ-DJQ-D
|
|
Type
|
Rail Chamfering Tool
|
|
Material
|
Stainless Steel
|
|
Dimensions (L x W x H) (mm)
|
180* 50*190mm
|
|
Max chamfer diameter
|
Φ 31~Φ32
|
|
Max chamfer cutting torque
|
Tmax = 10N • m
|
|
Max moving forceh of handle rod
|
Fmax = 55N (L = 180)
|
|
Working efficiency
|
1 piece /10 seconds
|
|
Overall size
|
180* 50*190mm
|
|
Machine weight
|
1KG
|
