Multi-angle rail wear gauge

INQUIRY

PRODUCT DESCRIPTION

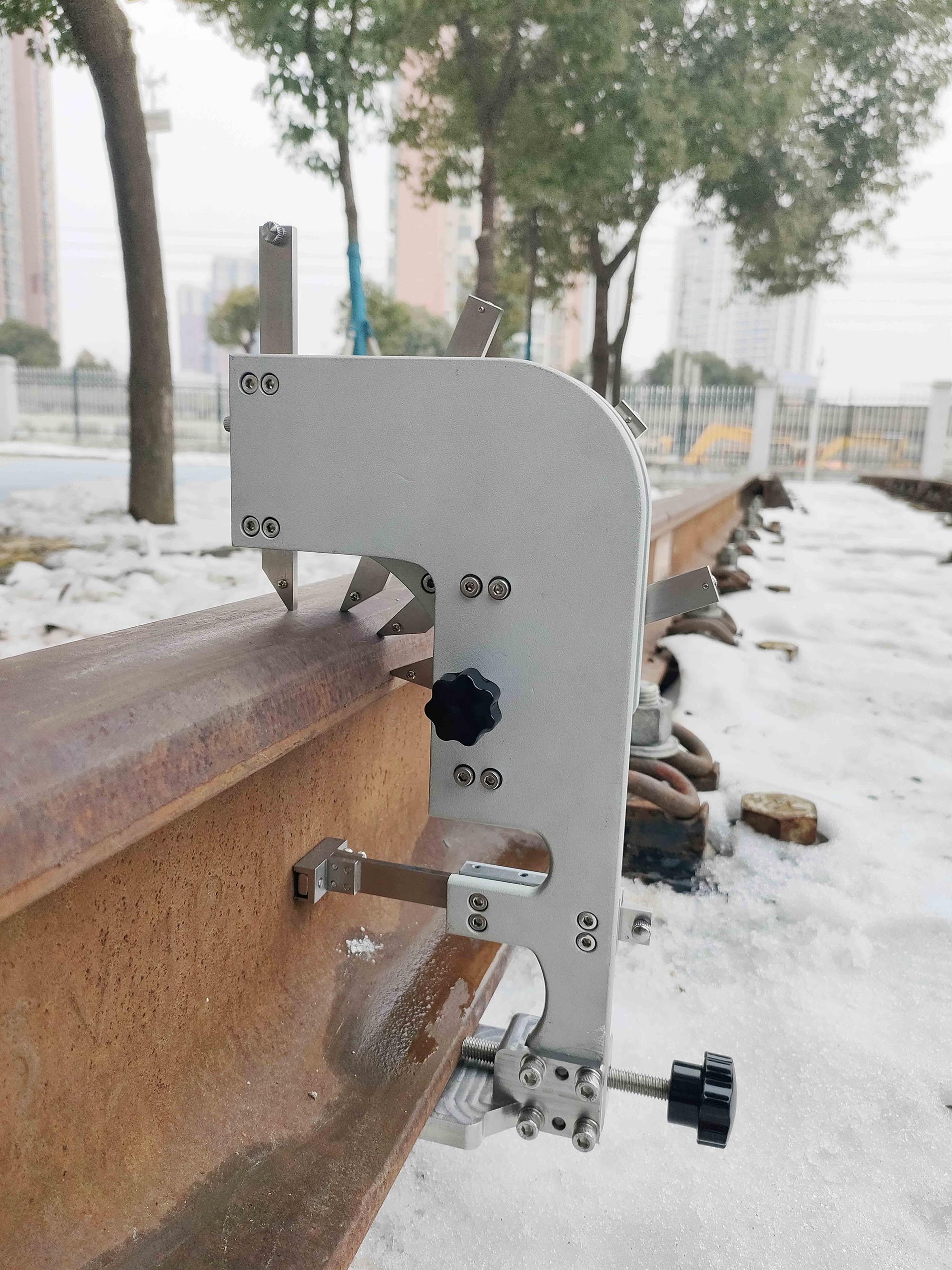

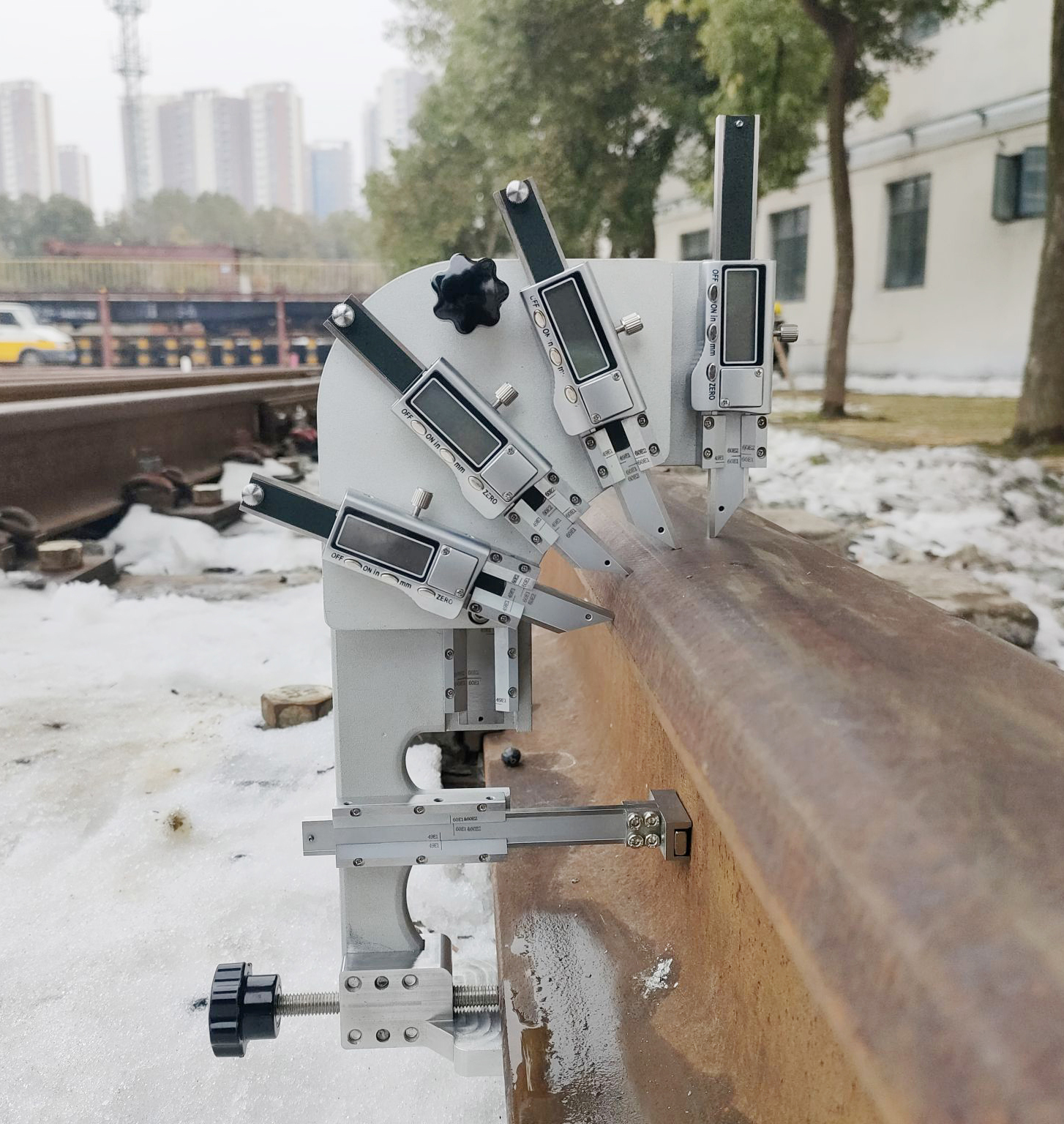

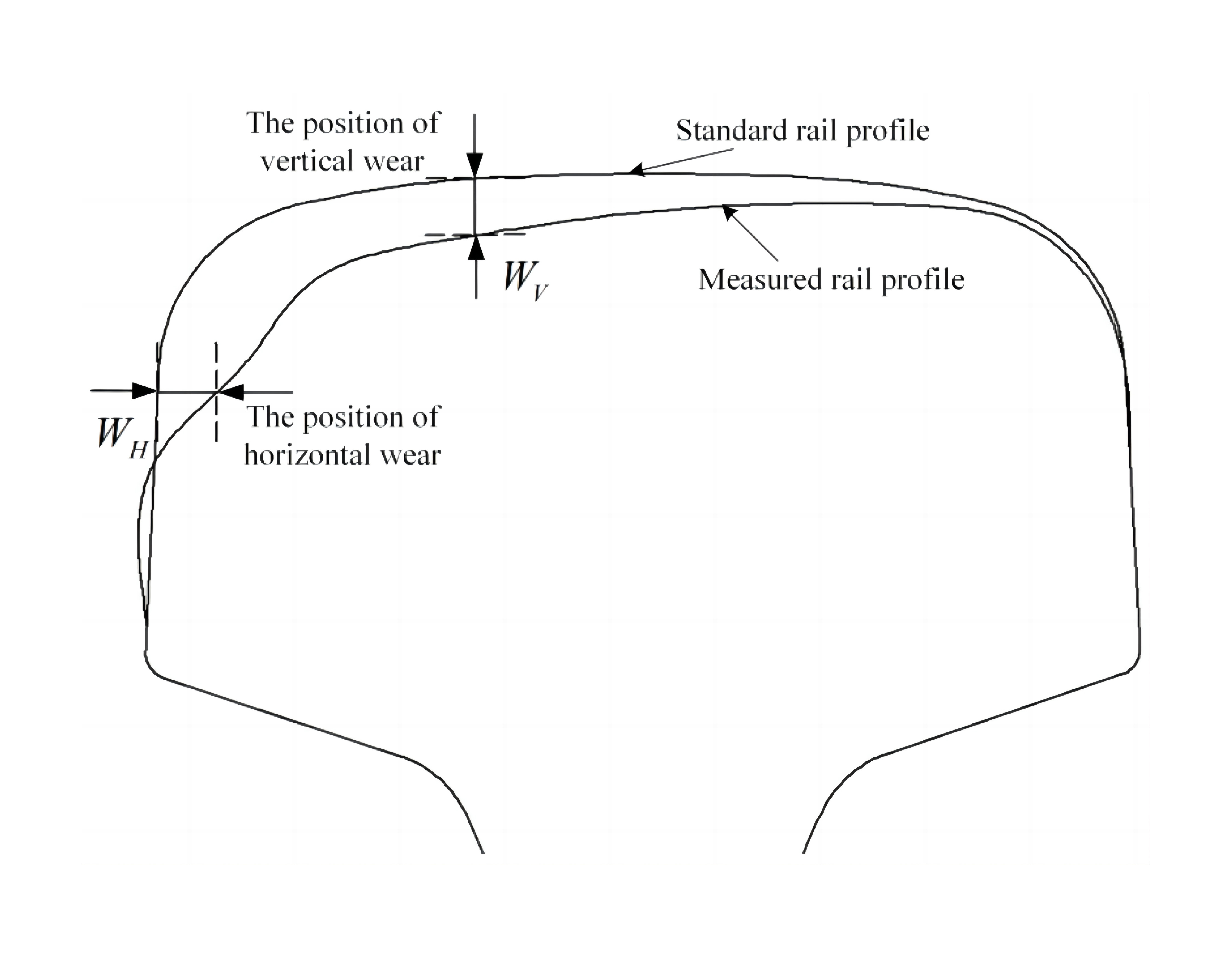

Multi-angle rail wear gauge, it is designed to measure the rail profile wear in 4 difference angle at 22.5°,45°,67.5°, and 90°in the horizontal direction of the working edge of 3 rail profile types.

FEATURE

1. Measuring the rail profile wear at 4 different Angle: 22.5°,45°,67.5°, and 90°

2. Can use to measure 3 different rail profile type with one Gauge

3. Easy operate, and high accurcy

SPECIFICATION

Model	LJ-DGM-A
Center vertical wear measure range	0-25mm
Lateral wear measure range	0-25mm
Score value	0.01mm
Indication error	≤ ± 0. 15mm
Supply Customize	UIC60/60E1, UIC54 /54E1, 115RE 68TR ect all profiles
Block	customize block for gauge

APPLICATION

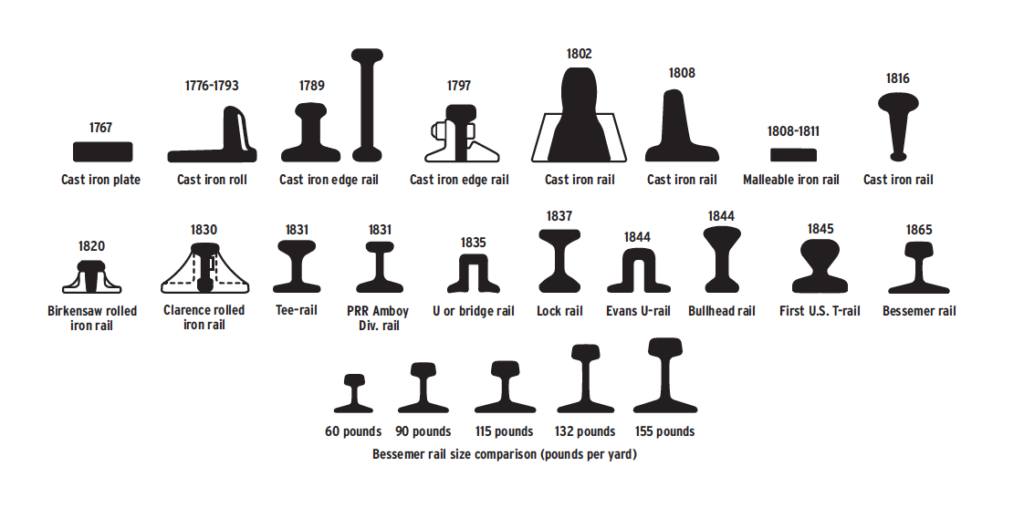

Here are some common global classification standards and specific rail profile type:

1. American Standard (AREMA standard): 115RE, 132RE, 136RE, 141RE

2. European Standard (UIC standard): 39E1,45E1, 49E1 (S49), 49E5, 50E2, 50E3, 50E6 (U50), 54E1 (UIC54), 54E2 (UIC54E), 54E3 (S54), 54E4, 54E5, 56E1, 60E1 (UIC60), 60E2

3. Japanese Standard: JIS 37A, JIS 50N, JIS 60N

4. Chinese Standard: 38kg/m,43kg/m, 50kg/m,60kg/m,75kg/m

5. Indian Standard: ISCR50, ISCR60, ISCR70, ISCR80, ISCR100,ISCR120

6. Australian Standard: AS60, AS68

7. Russian Standard: P50, P65, P75

8. British Standard: BS60A,BS60R,BS70A,BS75A,BS75R, BS80A,BS80R,BS90A,BS100A,BS113A
