Rail profile measuring device !
Rail profile measuring device !

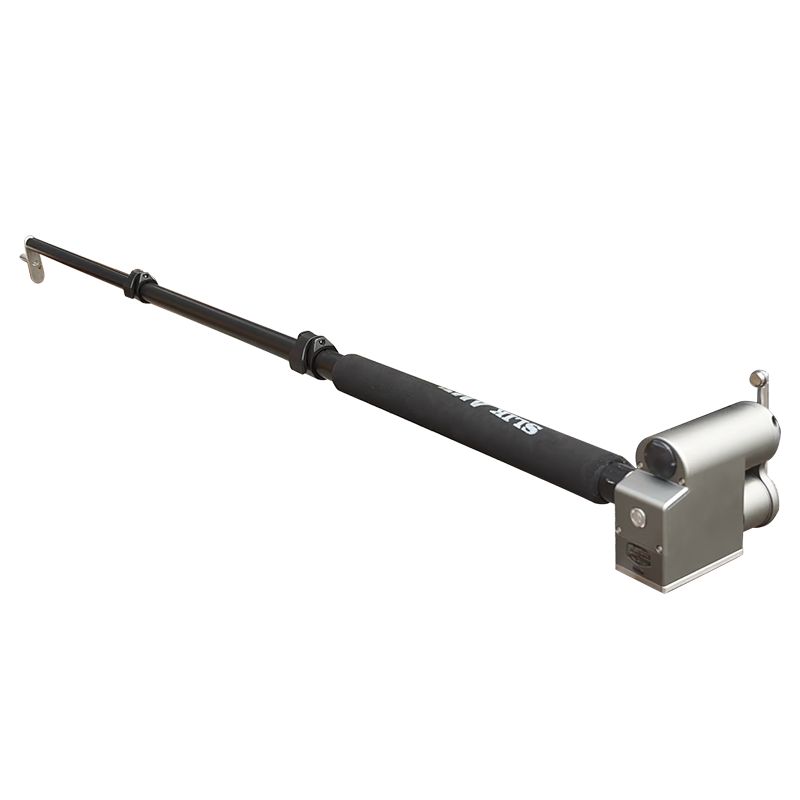

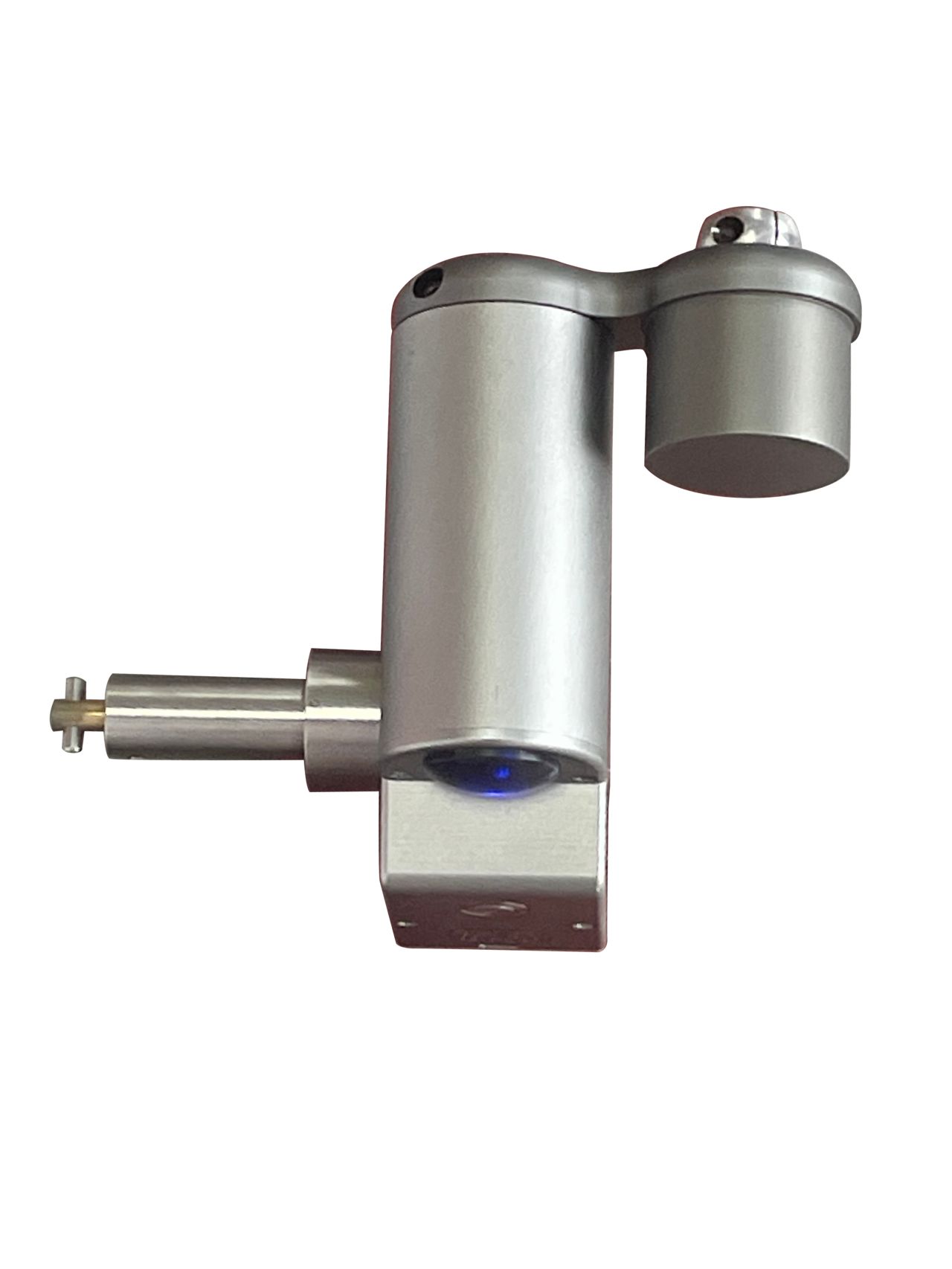

RPMI-G Rail Profile Measuring Device is a high precision, lightweight and portable tool for performing fast and reliable cross-sectional rail profile measurements to monitor and analyze the wear of rails. It is equipped with Bluetooth/Wifi/4G, and is available for all type of rails.

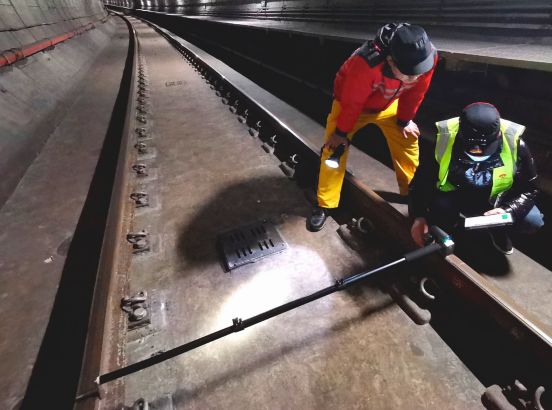

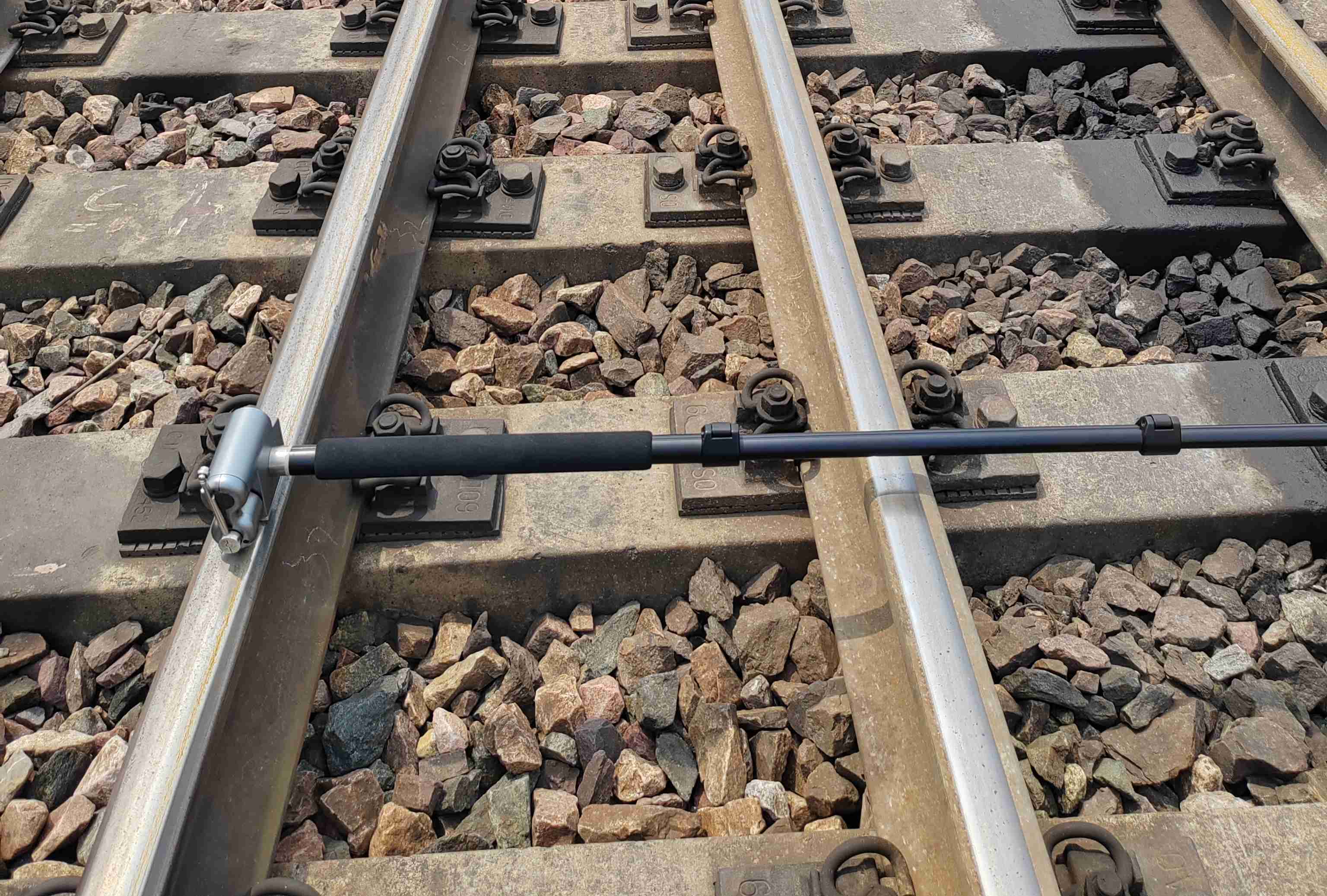

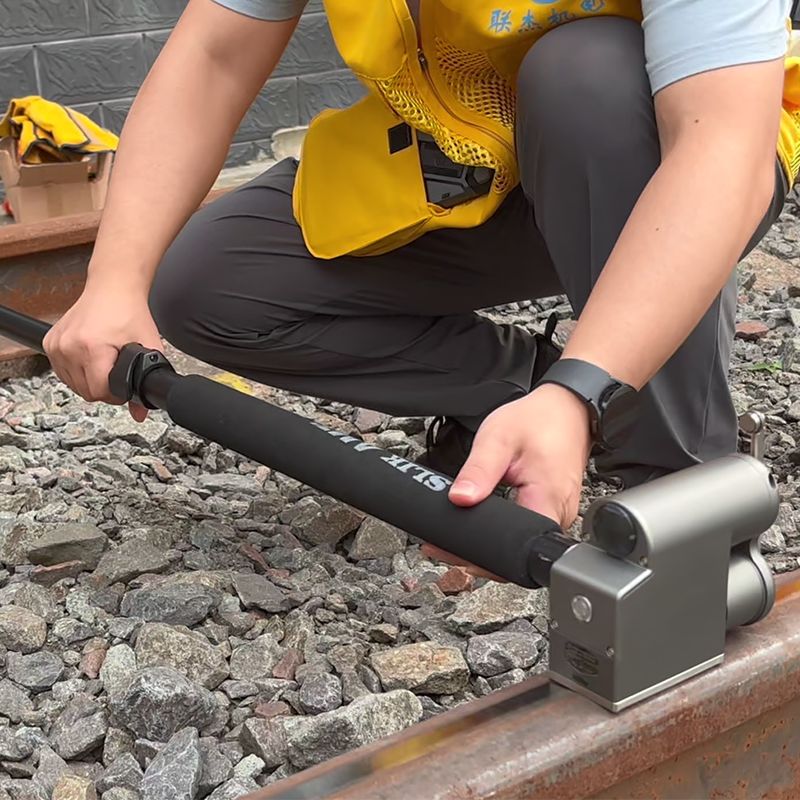

Magnetically attached to the top of the railhead, the rail profile and track gauge is measured in one single measurement in less than 5 seconds.
Model
RPMI-G
Measuring:
for different rail profile type
Battery capacity:
2*3.7v LI-ION/6000mAh
Horizontal resolution:
500-800 points/section
Bluetooth standby time:
100H (>500 measurements)
Measurement accuracy :
±10μm
No operation shutdown time:
10 minutes
Repeatability:
rms<5 μm
Protection level:
IP65
Collecting points:
>10000 points/rail head
Environment Working temperature:
-30°C~+60°C
Scanning time:
<5 seconds
Working temperature of steel rail:
-40°C~+80°C
Data processing time:
<2 seconds
Humidity requirements:
<90%
Net weight :
1.15KG
Communication interface:
Bluetooth/Wifi/4G
Dimension:
135*45*100mm (Main body)
Positioning module:
GPS/Beidou
