Track Gauge
Calibrator For Railway Track Gauge
Product Description

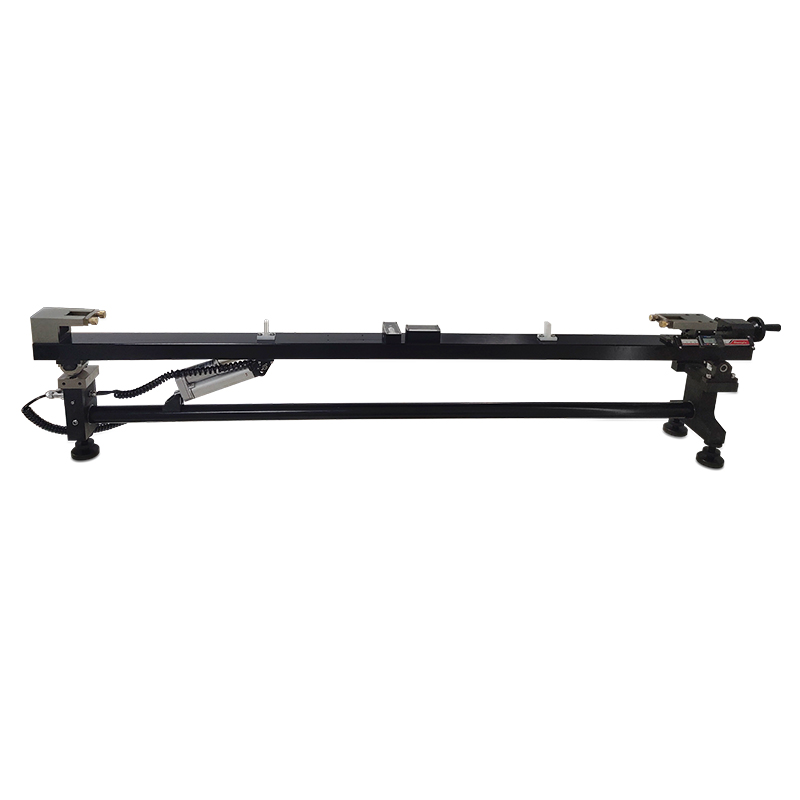

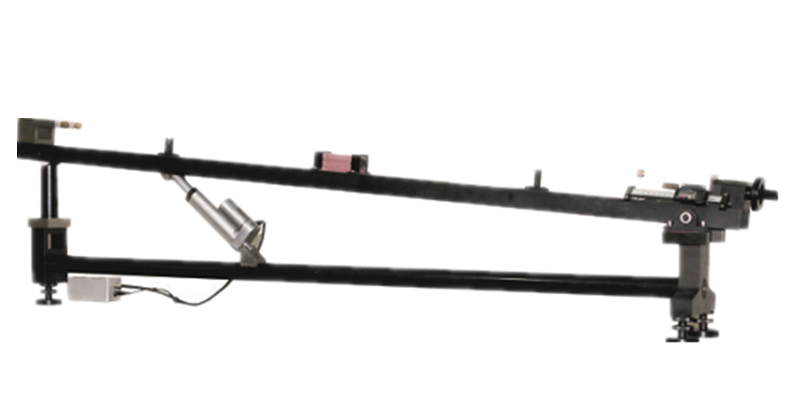

Track Gauge Calibration Device
The calibrator is a railway measuring instrument that used to calibrate the 1435mm track gauge, the guard rail check gauge, the guard rail face gauge and the super-elevation.
|
Model
|
LJ-JDQ-I
|
|
Type
|
Track Gauge Calibrator
|
|
Material
|
Aluminium alloy
|
|
Dimensions (L x W x H) (mm)
|
1800*100*500mm
|
|
Track gauge
|
1410-1470mm Accuracy: Zero position ±0.04mm Nonzero position ±0.06mm
|
|
Super elevation
|
Super elevation special gauge part 30mm,60mm,120mm,180mm Use according to the measured value Accuracy: ±0.06
|
