Track Gauge

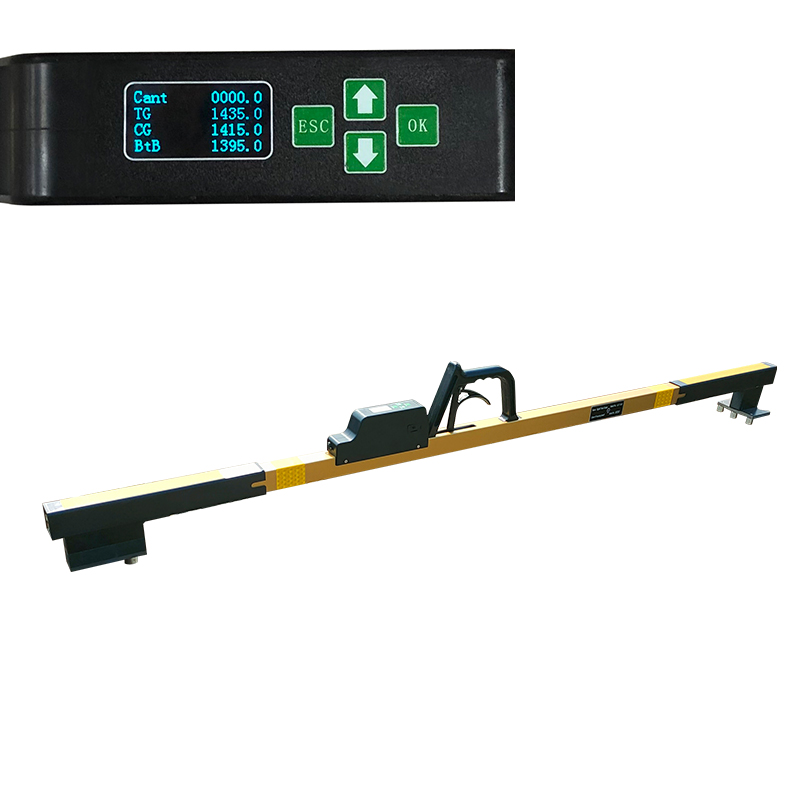

Digital Track Gauge
PRODUCT DESCRIPTION

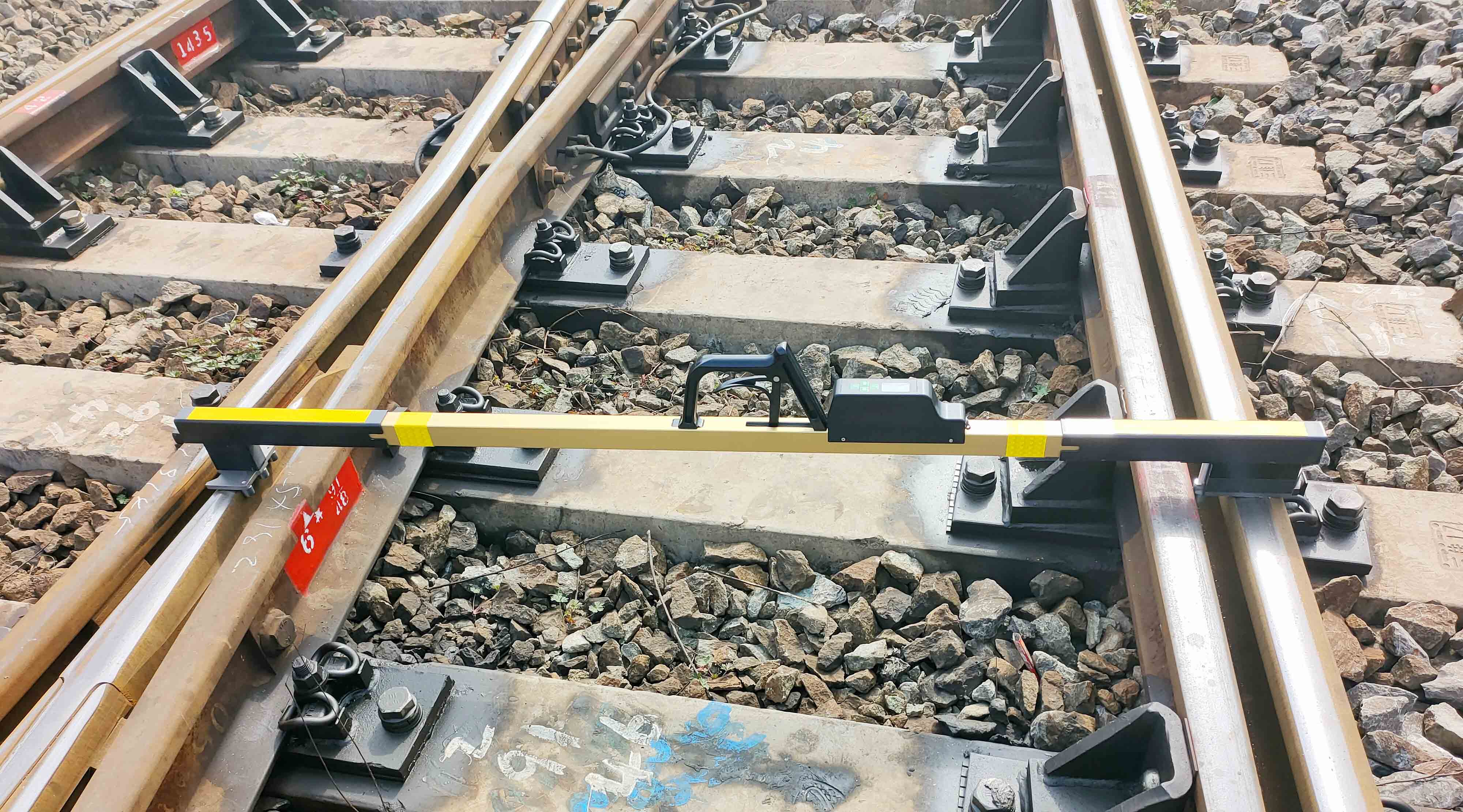

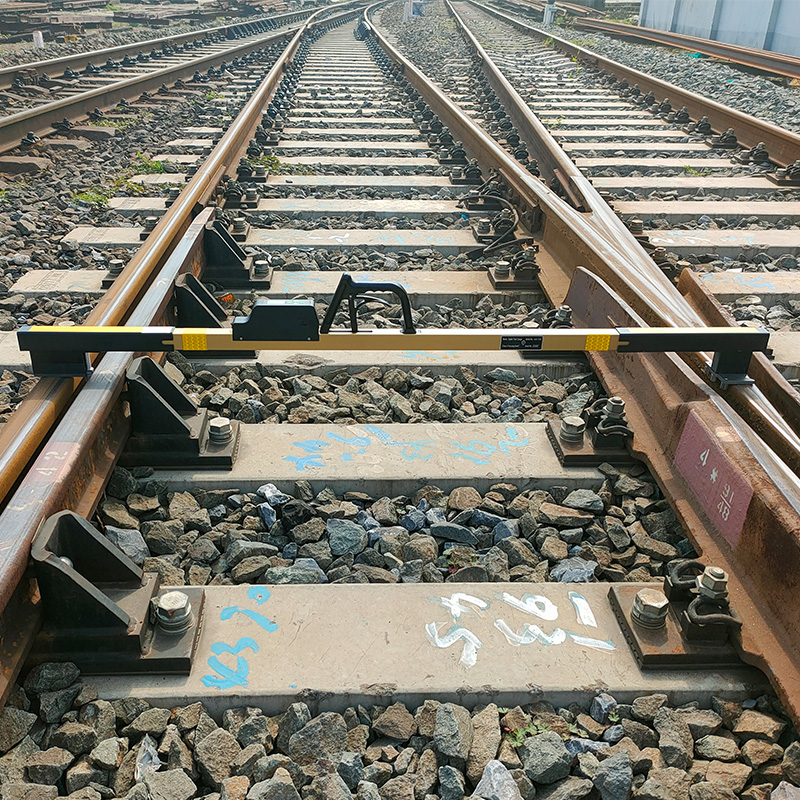

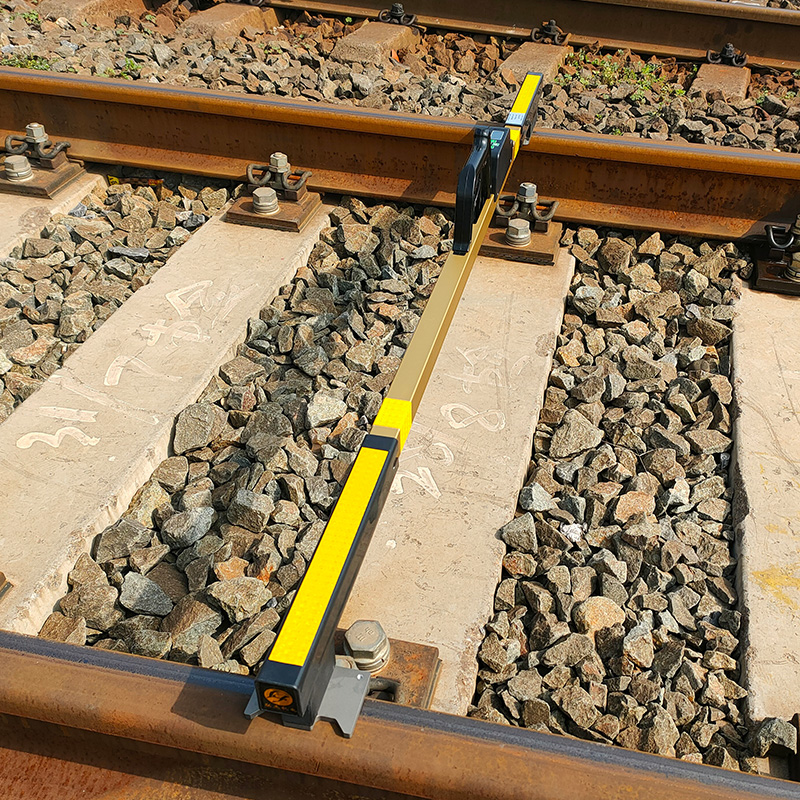

Digital Track Gauge can directly read the measurement values of railway track gauge, super elevation , check rail gauge, back to back distance and flangeway clearance through microelectronics, embedded and sensor technologies and OLED display screen.
FEATURE

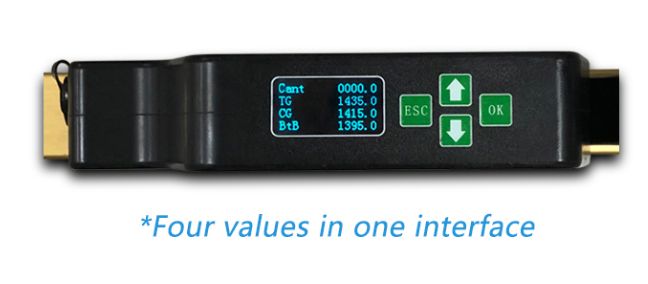

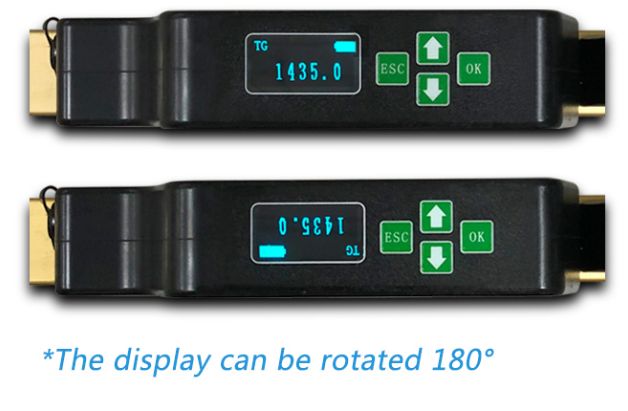

1. Large LED backlit display: especially suitable for day outside and dark night2. Quick calibration operation: simple measurement process
3. Large capacity battery:long standby time
4. Accurate measurement:keep long-term stability
5. Temperature compensation :working temperature is -30~+55℃
6. Insulated design
7. Anti-electromagnetic interference
8. Waterproof:could use in rainy day
9. power saving function: no operation within 15 minutes, the system will automatically shut down.
10. Approval by CHINA ACADEMY OF RAILWAY SCIENCES
11.1000mm,1067mm,1435mm,1520mm,1600mm,1676mm track gauge is available.
SPECIFICATION
|
Model(1435mm)
|
GJC-TJG1
|
|
Track gauge(mm)
|
1384-1470
|
|
Gauge rail check gauge(mm)
|
1364-1450
|
|
Guard rail face gauge(mm)
|
1344-1430
|
|
Superelevation measuring range(mm)
|
-200~+200
|
|
Flangeway Clearance(mm)
|
20-107
|
|
Superelevation division value(mm)
|
0.10
|
|
Track gauge division value(mm)
|
0.1
|
|
Track gauge max indication error(mm)
|
±0.25
|
|
Superelevation error(mm)
|
±0.45
|
|
Application rail line
|
railway speed less than 250km/h
|
APPLICATION

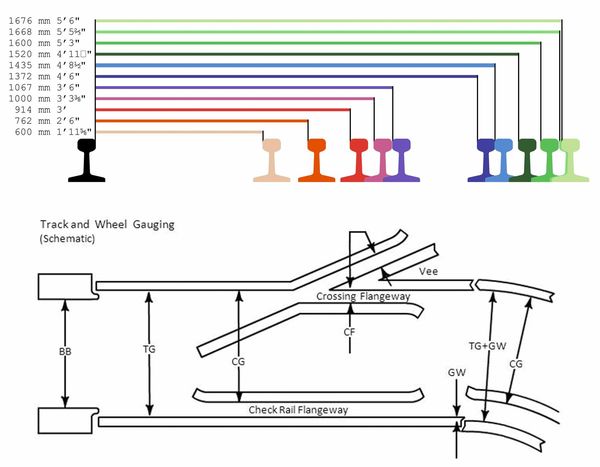

Difference track gauge around the worldwide:
Standard Gauge (1435mm): Most widely used gauge globally. Commonly used in North America, Europe, China, and parts of Africa.
Metre Gauge (1000mm): Commonly used in Switzerland, parts of Latin America, and some African countries.
Cape Gauge (1067mm): Used in southern Africa, including South Africa, Botswana, Zimbabwe, and Mozambique.
Broad Gauge (1676mm): Primarily used in India, Bangladesh, Pakistan, and Sri Lanka, Argentina, Chile
Russian Gauge (1520mm): Used in Russia, Mongolia, and parts of Eastern Europe.
Broad Gauge (1524mm): mainly used in Finland
Broad Gauge (1600mm)
Broad Gauge (1668mm)
Iberian Gauge (1668mm)
Irish Gauge (1600mm)
