Rail Drilling Machine
NZMZ-20 Wooden Sleeper Drilling Machine
Product Description

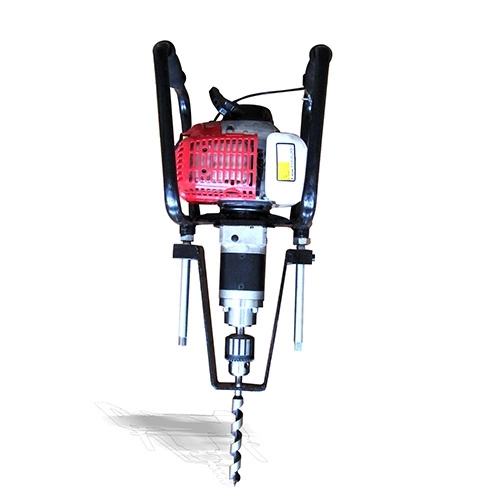

NZMZ-20 Portable Sleeper Drilling Machine
This machine is light-weight and easy to use and has the purpose of quickly drilling wooden sleepers ensuring precision andmaximum safety for the operator.
It is composed of:
* 4-stroke petrol engine with valves at the top and special lubrication to work on 360°;
* High-strength speed reducer gears lubricated by special TK3 grease that guarantees excellent lubrication and long life;
* Ergonomic handle with throttle lever and engine safety lock;
* Safety system with centrifugal clutch;
* Possibility of inserting a lever able to rotate the drill bit in case of blockage;
* Quick coupling / uncoupling spindle of the drill bit.
Optionally we can supply:
* Drill bit protection and drilling depth regulator ;
* Trolley with 3 wheels for different types of track gauge;
* SleeperDrill Bits.
It is composed of:
* 4-stroke petrol engine with valves at the top and special lubrication to work on 360°;
* High-strength speed reducer gears lubricated by special TK3 grease that guarantees excellent lubrication and long life;
* Ergonomic handle with throttle lever and engine safety lock;
* Safety system with centrifugal clutch;
* Possibility of inserting a lever able to rotate the drill bit in case of blockage;
* Quick coupling / uncoupling spindle of the drill bit.
Optionally we can supply:
* Drill bit protection and drilling depth regulator ;
* Trolley with 3 wheels for different types of track gauge;
* SleeperDrill Bits.
Specification
|
Model
|
NZMZ-20
|
|
Type
|
Sleeper Drilling Machine
|
|
Material
|
Stainless Steel
|
|
Dimensions (L x W x H) (mm)
|
420*500*1070mm
|
|
ENGINE
|
2 stroke petrol engine, 1.42kW
|
|
Max. drill diameter
|
20mm
|
|
Drill speed
|
≥350r/min
|
|
Drill speed
|
≤20s
|
|
Weight
|
14kg
|
