Rail Drilling Machine
NZG-31 Internal Combustion Rail Drilling Machine
Product Description

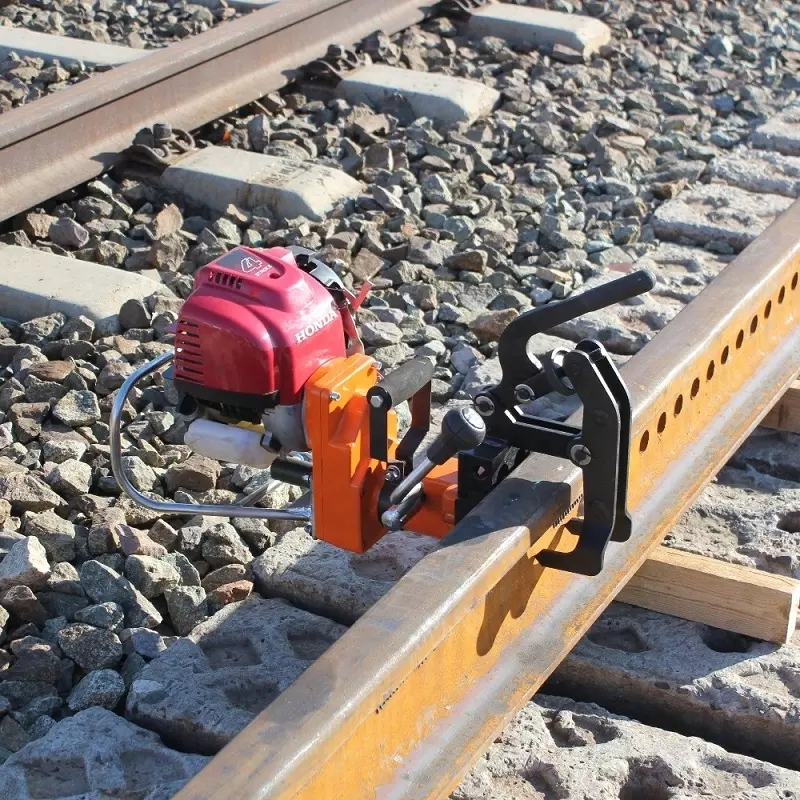

NZG-31 Rail Drilling Machine
NZG-31 rail drilling machine is compact in structure, and it is the lightest drilling machine in China at present. The rail
clamping device has self-locking function, accurate positioning and high drilling accuracy. The n-tailed hollow drill bit can be used to clamp the special twist drill with n-tailed shank under 13.5 according to the needs. It has the function of automatic water supply when drilling. It is a necessary tool for maintenance, rush repair and overhaul operation of Public Works Department.
clamping device has self-locking function, accurate positioning and high drilling accuracy. The n-tailed hollow drill bit can be used to clamp the special twist drill with n-tailed shank under 13.5 according to the needs. It has the function of automatic water supply when drilling. It is a necessary tool for maintenance, rush repair and overhaul operation of Public Works Department.
Advantage
1. The water supply at the back of the main shaft is adopted to prevent the cooling water from entering the bearing and reducer, so as to improve the service life of the equipment.
2. When drilling, the rotary resistance is reduced and the drilling torque is increased.
3. The drilling time is shortened and the production efficiency is improved.
|
Model
|
NZG-31
|
|
Type
|
Rail Drilling Machine
|
|
Material
|
Stainless Steel
|
|
Dimensions (L x W x H) (mm)
|
650 * 230 * 250mm
|
|
Engine type
|
four-stroke petrol engine
|
|
Engine Power
|
1.2kW
|
|
Idle Rev
|
≥270r/min
|
|
Borehole diameter
|
Φ9.8～36mm
|
|
Drilling time
|
≤25s
|
|
Machine weight
|
17kg
|
