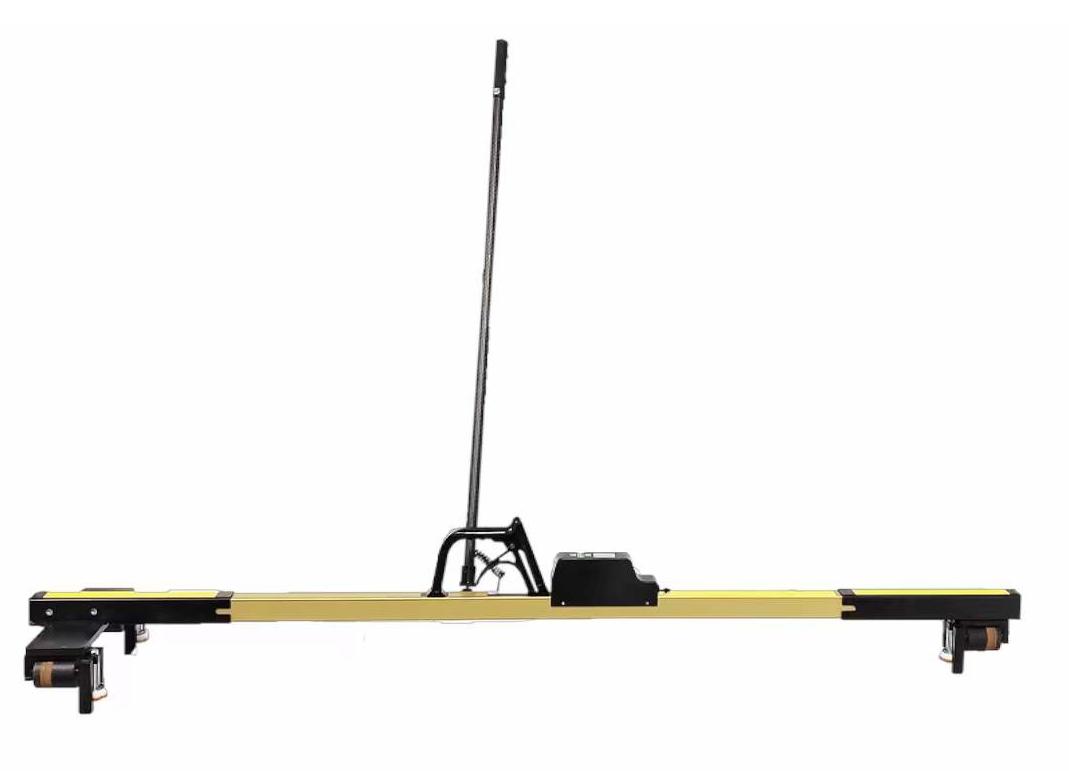

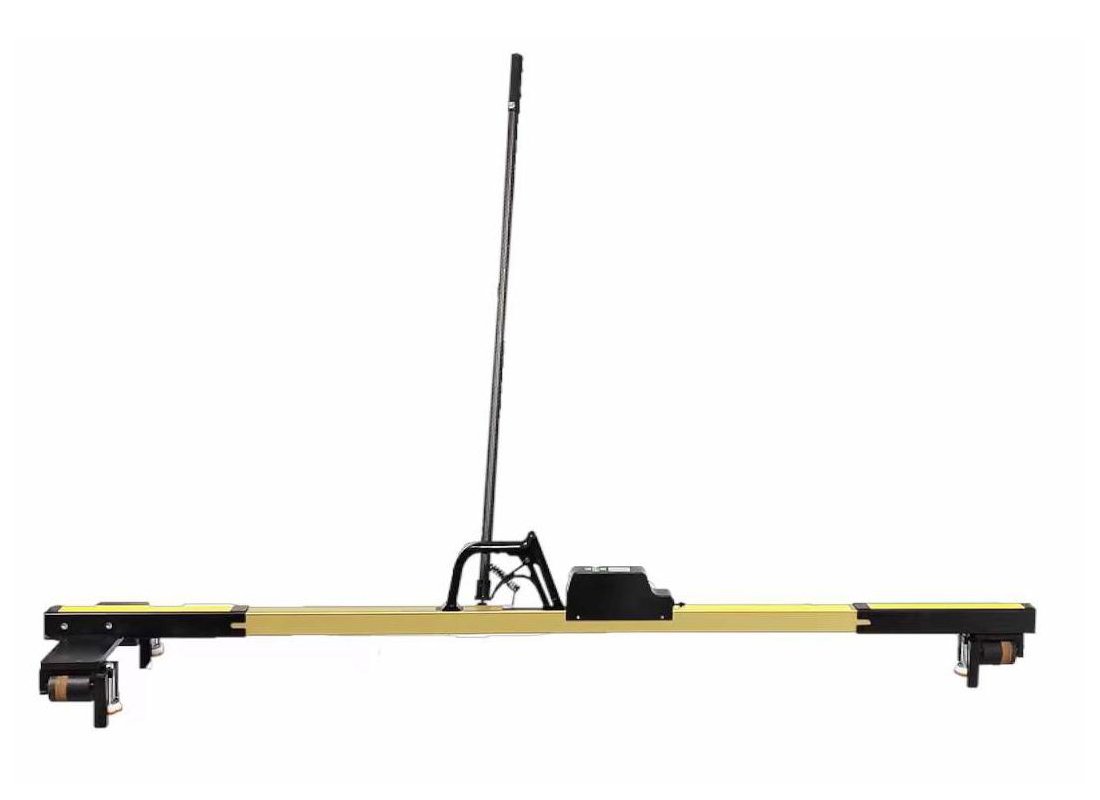

Portable Digital Rolling Track Gauge

PRODUCT DESCRIPTION

Portable Rolling Track Gauge is mainly used for railway track gauge and super-elevation (cant) .

It can be used for track inspection and fine adjustment of rail gauge. This product has the advantages of fast measuring speed, stable pushing rod, easy to carry,and night-time and tunnel work,legible even in direct sunlight are supported.It is an ideal measuring tool for track fine-tuning, track construction,inspection and track laying.

FEATURE

4. High working efficiency. Save your man power. ( 1 man with 1 rolling gauge = 4 man with 4 normal digital track gauge)

5. 1000mm,1067mm,1435mm, 1520mm, 1600mm and 1676mm etc. available

SPECIFICATION

Model (1435mm)  Other Track Gauge can be customized	GJC-JJG0
Track gauge	1410-1470mm
Superelevation measuring range	-185~+185mm

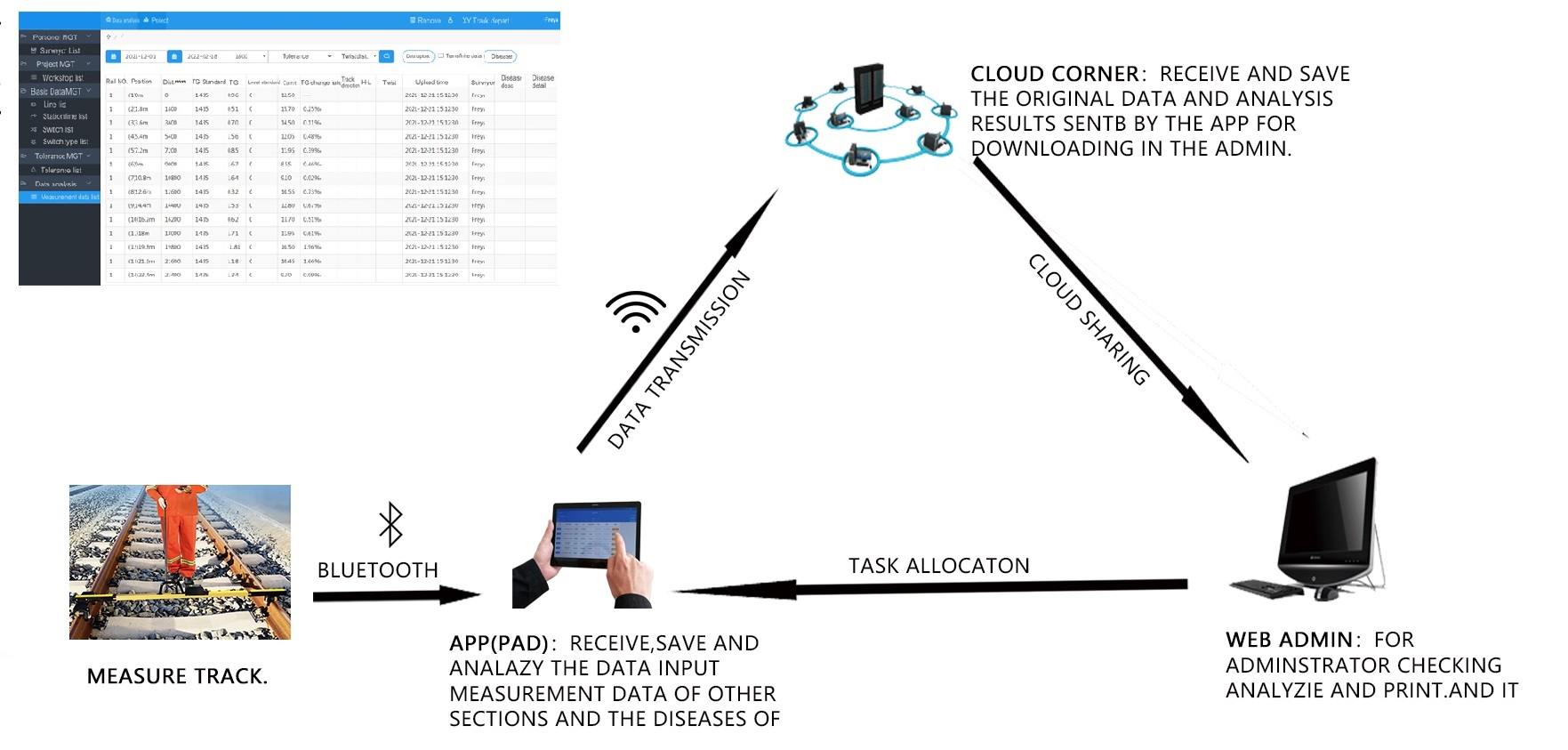

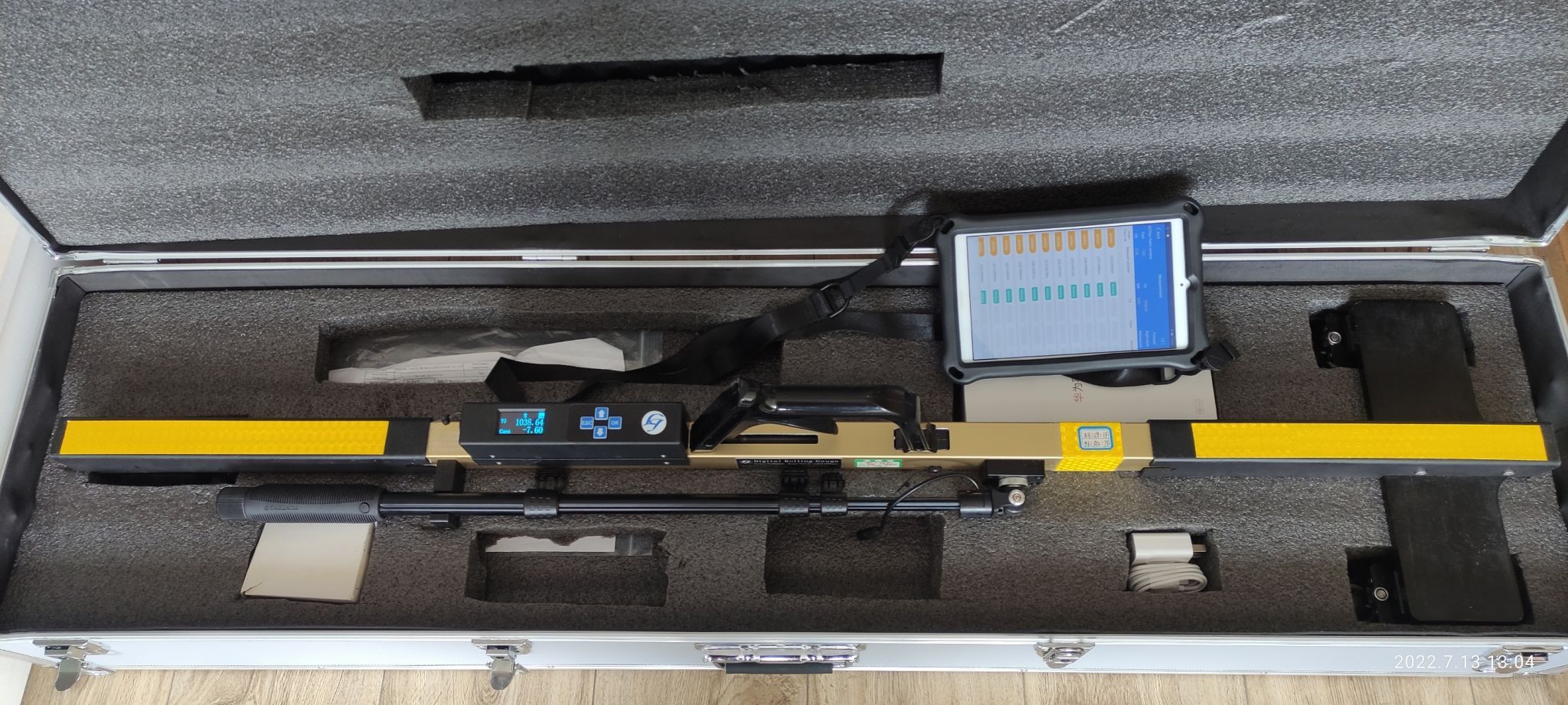

Display mode	OLED display and hand-held terminal display
Supply Voltage	DC3.4V～5.2V (rechargeable battery)
Superelevation division value	0.05mm
Working temperature	-30℃～+55℃
Insulation performance	＞1MΩ
Track gauge division value	0.01mm
Superelevation division value	0.05mm
Track gauge max indication error	≤±0.25mm
Superelevation max indication error	≤±0.3mm
Length	＜1700mm
Net Weight	7.0kg

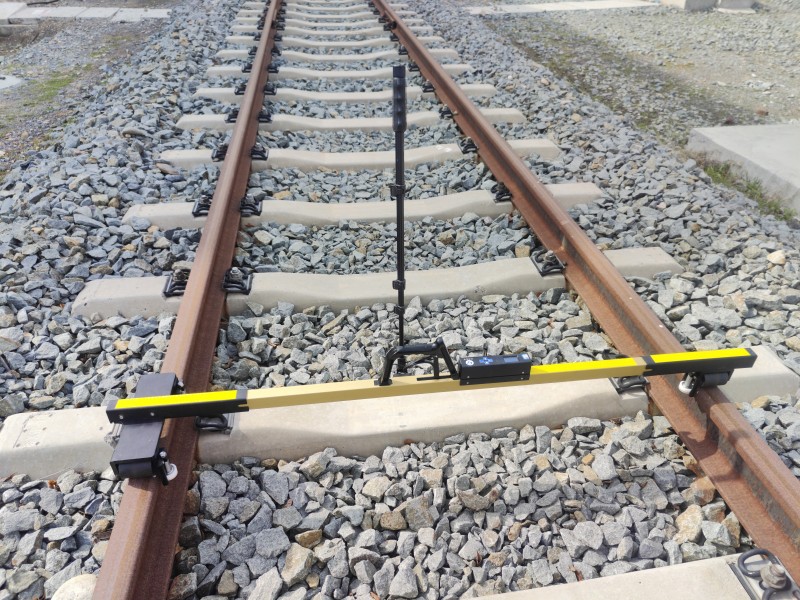

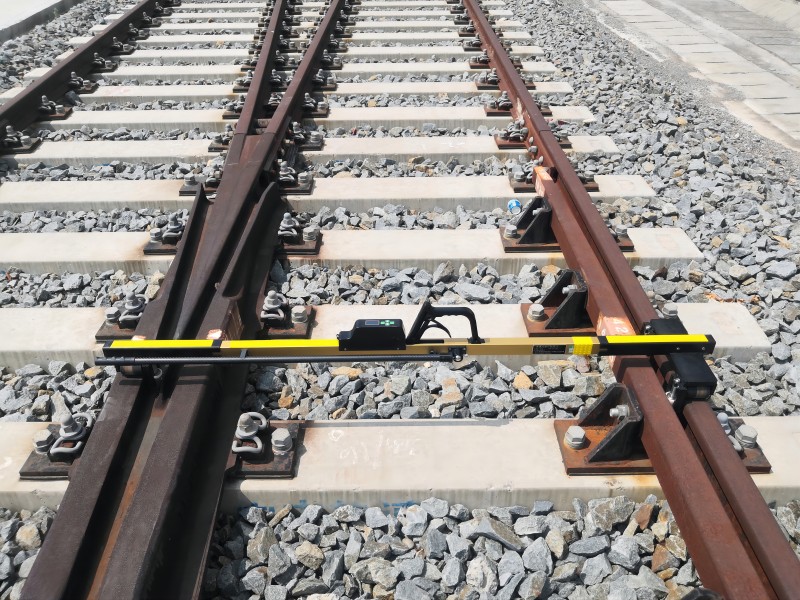

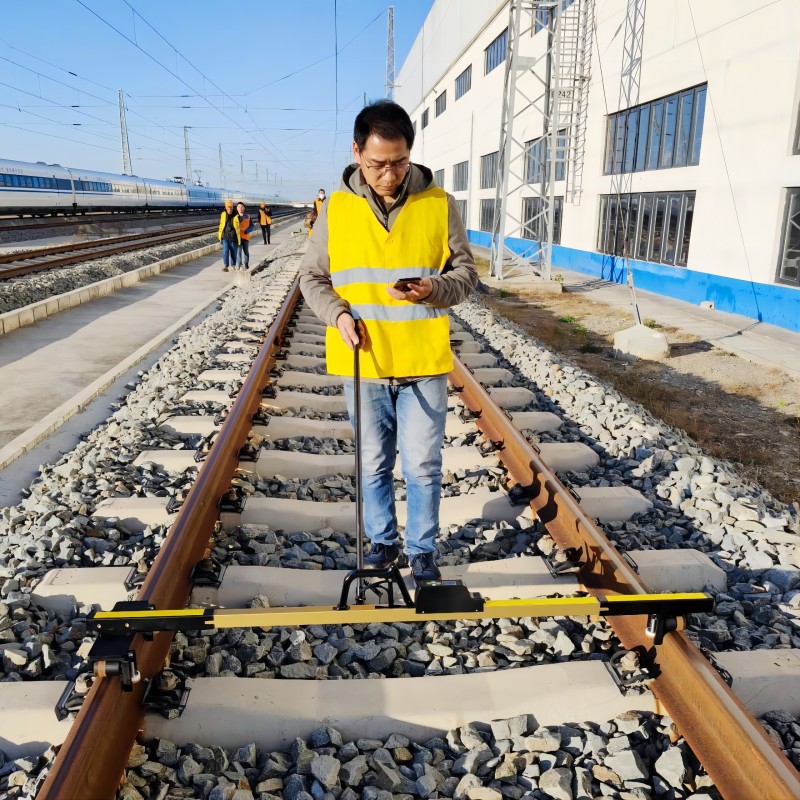

APPLICATION
