Rail Grinding Machine
NGM-6.3 Digital Control Rail Profile Rail Grinder
PRODUCT DESCRIPTION
NGM-6.3 Digital Control Profiling Rail Grinder

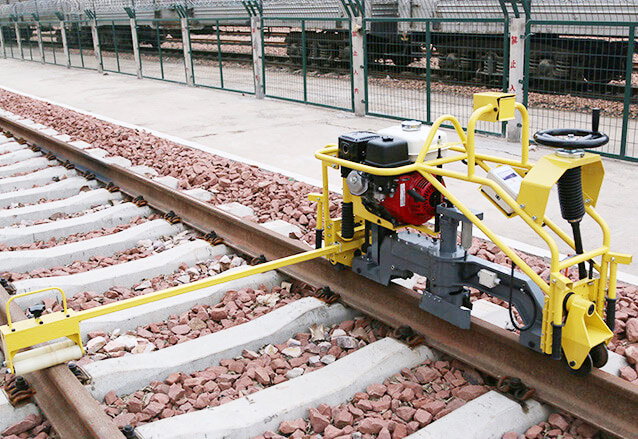

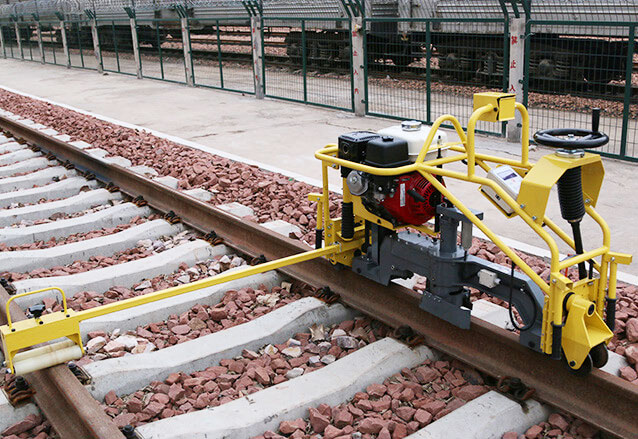

NGM-6.3 Ⅱ digital control profiling rail grinder , with petrol engine . Mainly used for the restoration and grinding of welded joints, calendering burrs, rail surface repair, waveform wear, etc. in the maintenance and construction of railway rails.
BENIFITS
1.Gasoline driven, strong adaptability to an open working environment.
2.The feeding of the grinding controlled by the electric, high polishing precision.
3.Following copying, easy operation.
2.The feeding of the grinding controlled by the electric, high polishing precision.
3.Following copying, easy operation.
SPECIFICATION
| Supporting power | imported GX270 gasoline engine (6.3kW / 3600rpm) |
| MCU running speed | 16 MIPS |
| LCD display resolution | 128 × 64 DOTS |
| Timer real-time display resolution | hour, minute and second |
| Timer cumulative display resolution | hours |
| Timer output resolution | year, month, day, hour, minute |
| Magneto output voltage | ~ 12V |
| External charging power supply | ~ 220 V |
| Grinding wheel stroke | 59 mm |
| Profiling track | 1010 mm |
| Deflection angle of profiling | ± 90 ° |
| Grinding wheel inching feed accuracy | 0.01 ~ 0.5 mm (real-time setting) |
| Working environment temperature | - 20 ℃ ~ + 70 ℃ |
| Overall dimension of main engine (length* wide* Height) | 1565 × 550× 973 (mm) |
| Weight | 99 kg |
