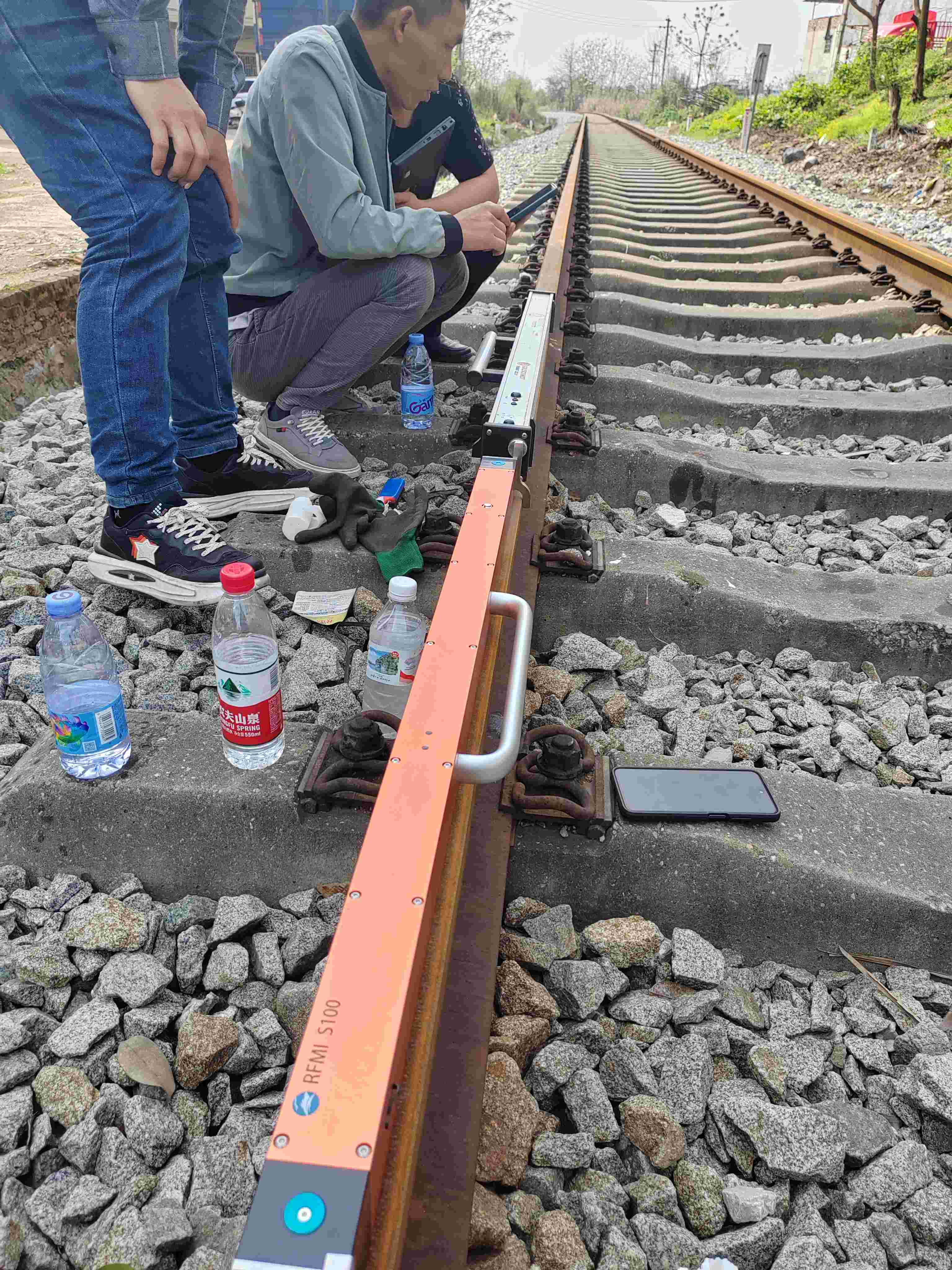

Rail Straightness Measuring Device

Rail Straightness Measuring Device

Measurement indicators:
Measurement length: 1000mm
Horizontal resolution: 100 points (1 point/cm)
Vertical resolution: 0.002mm
Measurement tolerance: ±0.01mm
Measurement stability: rms0.01mm
Measurement range: -2.5mm ~ +2.5mm
Single measurement time ＜6s
Environmental indicators:
Protection level: IP65
Ambient operating temperature: -20℃~+50℃
Rail operating temperature: -40℃~+80℃
Humidity requirement: ＜90%
Equipment indicators:
Equipment net weight: 4.2 KG
Chassis weight: 4 KG
Dimensions: 1200mm×65mm×40mm
Battery capacity: 4*3.7v LI-ION/12800mAh
Communication interface: Bluetooth/wifi/4G
Positioning module: GPS/Beidou
Bluetooth standby time: 150Hs (>5000 measurements)
WiFi standby time 80 hours (>3000 measurements)
