Rail Profile Measuring Device

Rail Profile Measuring Device

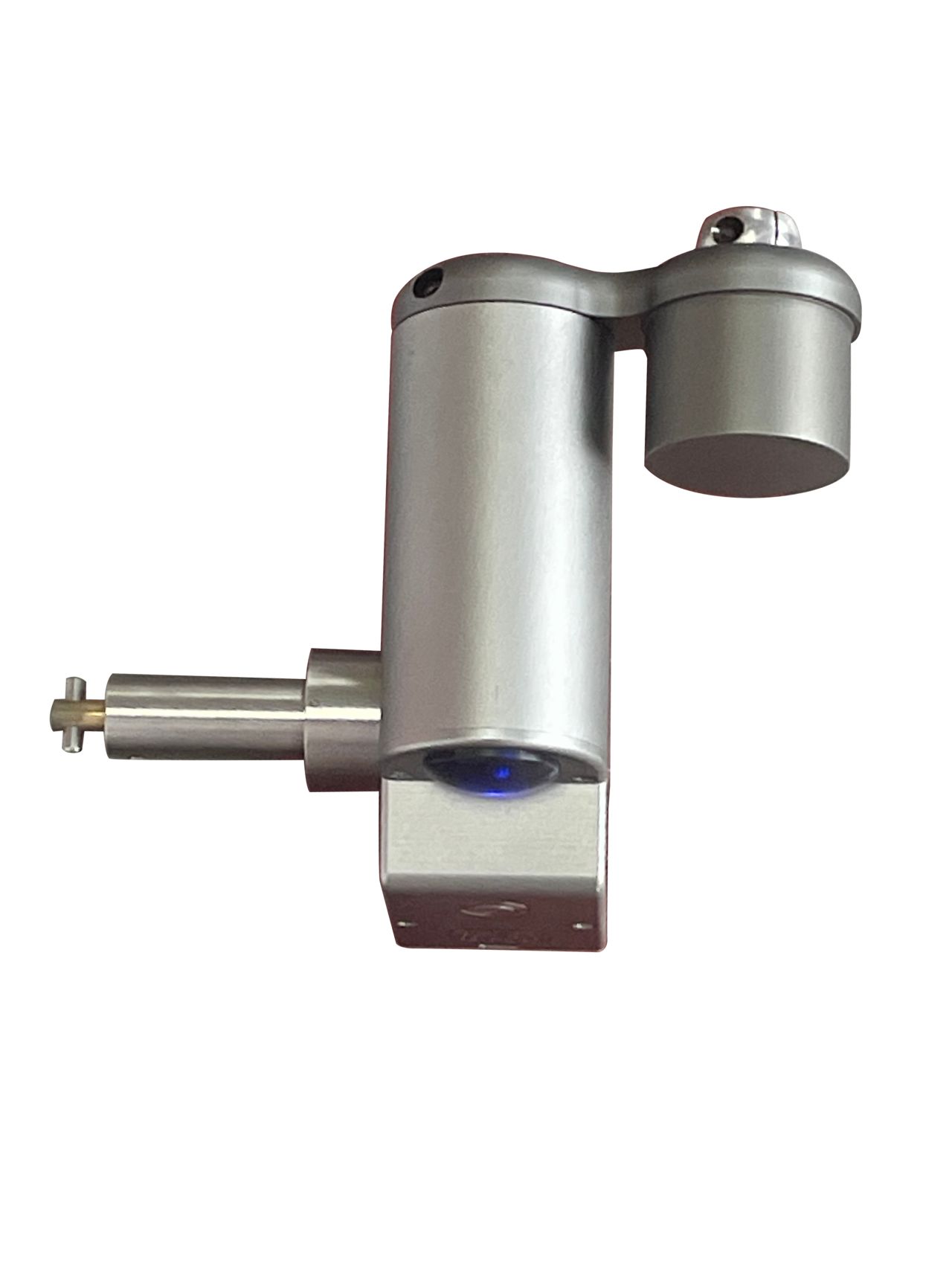

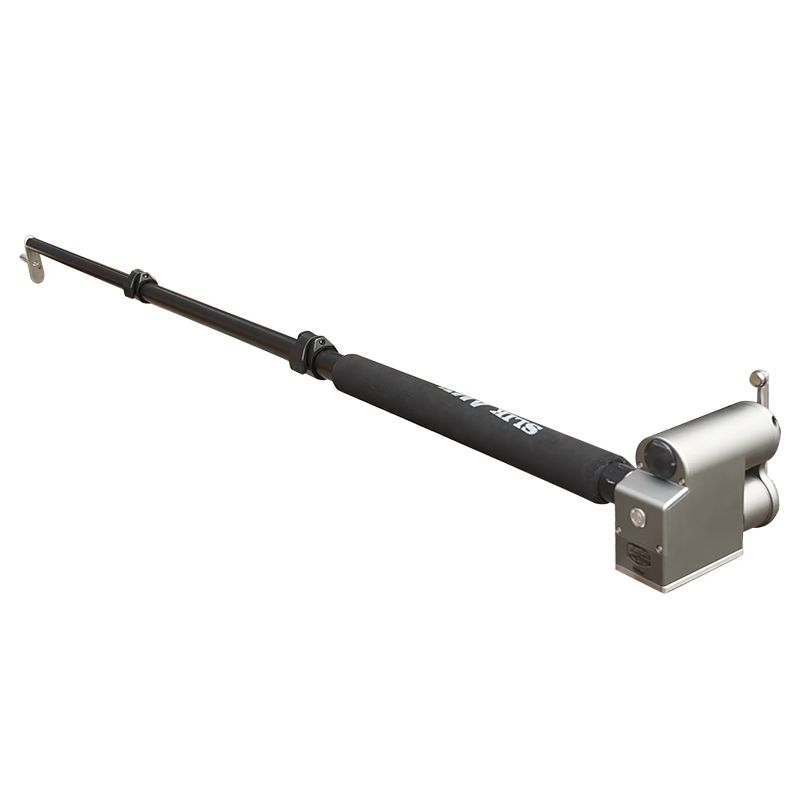

RPMI-G Rail Profile Measuring Device is a high precision, lightweight and portable tool for performing fast and reliable cross-sectional rail profile measurements to monitor and analyze the wear of rails. It is equipped with Bluetooth/Wifi/4G, and is available for all type of rails.

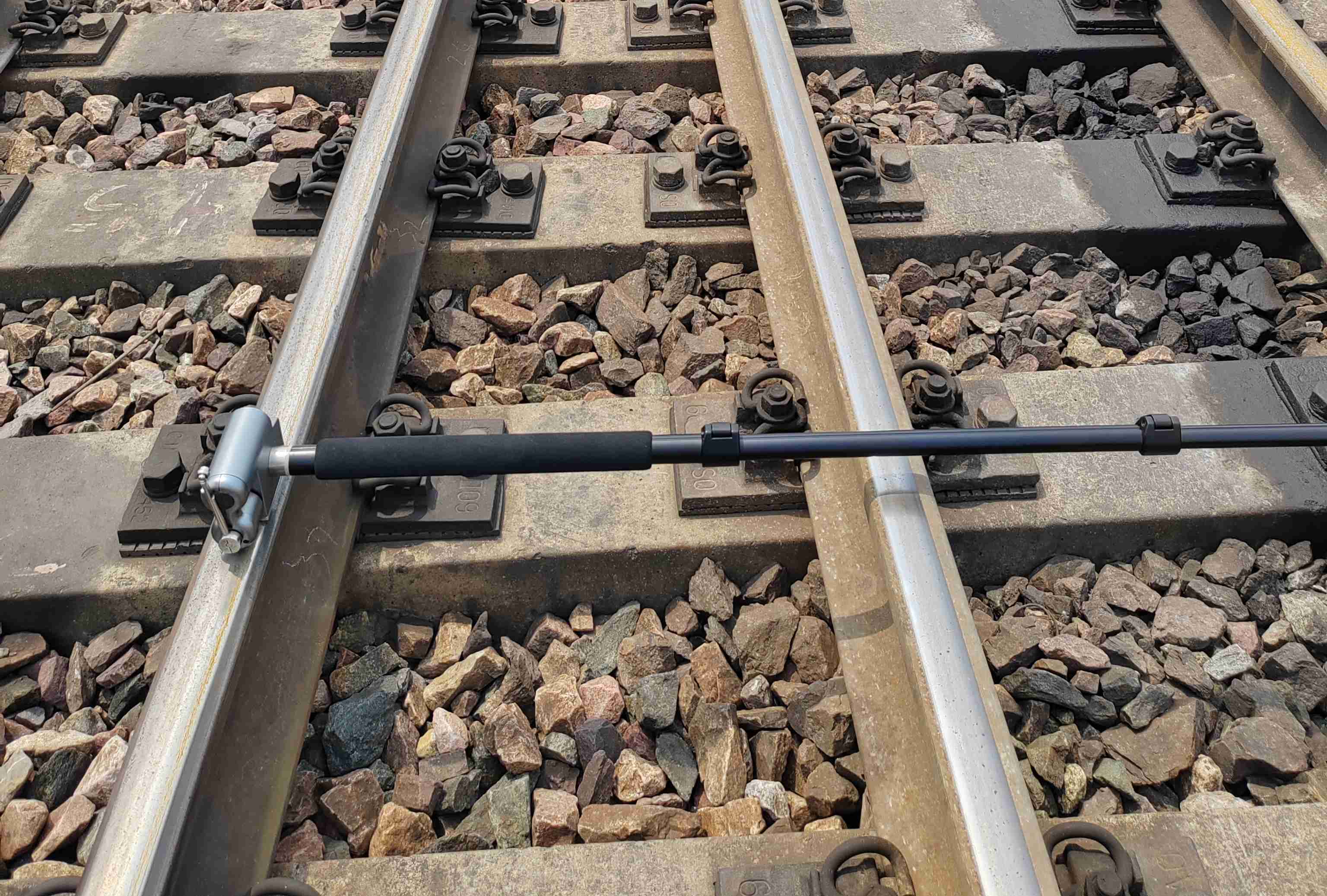

Magnetically attached to the top of the railhead, the rail profile and track gauge is measured in one single measurement in less than 5 seconds.

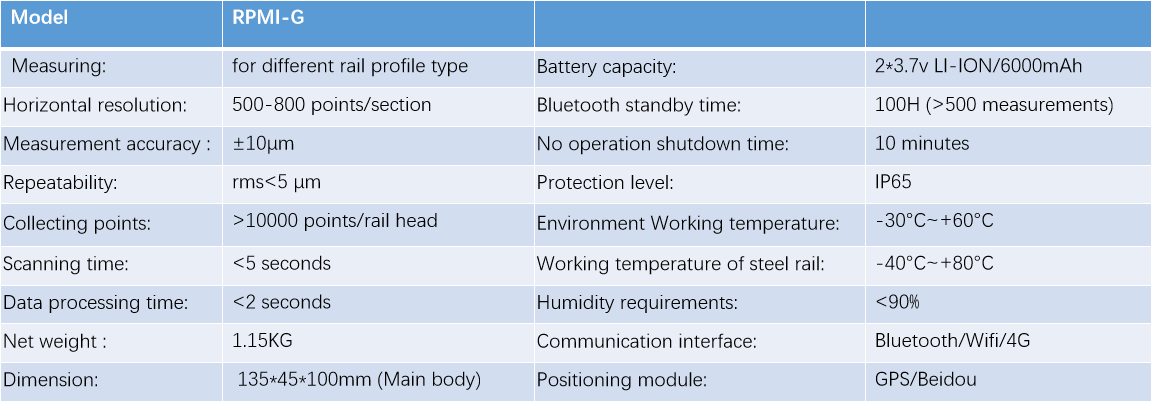

Technical Parameter:
